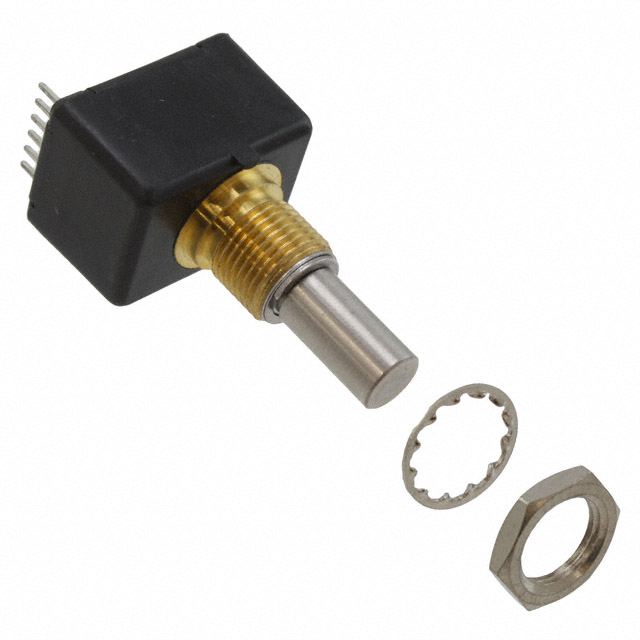

EMS22D31-D28-LT2

Active

Bourns Inc.

ENCODER ROTARY MAGNETIC, 3V, /TRAY PACKAGING

Search across all available documentation for this part.

Active

Bourns Inc.

ENCODER ROTARY MAGNETIC, 3V, /TRAY PACKAGING

Technical Specifications

Parameters and characteristics for this part

Specification	EMS22D31-D28-LT2

Actuator Type	1/8" Dia Round End
Detent	False
Encoder Type	Magnetic
Orientation	Vertical
Output Type	Tachometer
Pulses per Revolution	64
Rotational Life (Cycles Min) [Min]	50M
Termination Style	PC Pin
Voltage - Supply	3.3 V

Part	Rotational Life (Cycles Min) [Min]	Pulses per Revolution	Output Type	Actuator Type	Detent	Encoder Type	Orientation	Termination Style	Voltage - Supply
Bourns Inc. EMS22D31-D28-LT2	50M	64	Tachometer	1/8" Dia Round End		Magnetic	Vertical	PC Pin	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Encoder Magnetic 64 Tachometer Vertical
