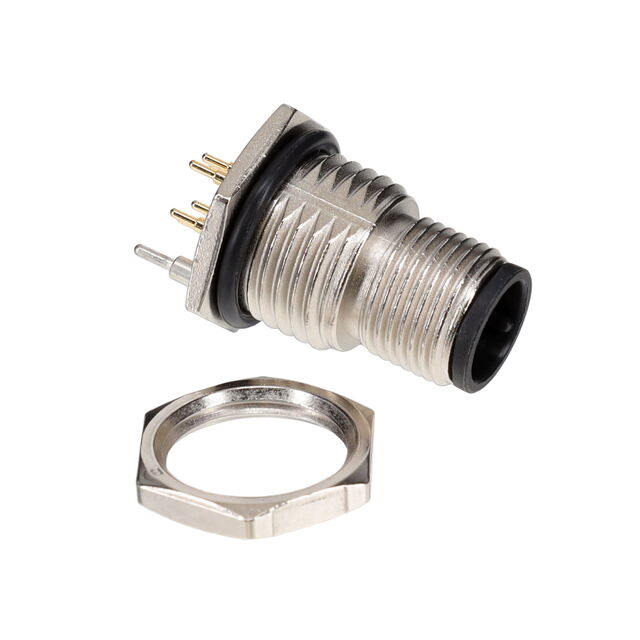

MSAS-06PMMP-SF8002

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 2A, 06 PINS, RECEPTACLE, HEXAGONAL ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	MSAS-06PMMP-SF8002

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Features	Ground
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-6
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VDC

Part	Shell Size - Insert	Contact Material	Features	Mounting Type	Voltage Rating	Color	Orientation	Current Rating (Amps)	Number of Positions	Connector Type	Insert Material	Primary Material	Ingress Protection	Contact Finish - Mating	Termination	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Finish	Mounting Feature	Shielding
Amphenol LTW MSAS-06PMMP-SF8002	M12-6	Copper Alloy	Ground	Panel Mount Through Hole	30 VDC	Silver	A	2 A	6	Male Pins Receptacle	Polyamide (PA) Nylon Glass Filled	Metal	IP68 IP69K	Gold	Solder	Zinc Alloy	-40 °C	105 ░C	Nickel	Bulkhead - Front Side Nut	Shielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder
