Technical Specifications
Parameters and characteristics for this part
| Specification | EVLVIPER28L-10W |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 2.4 A |
| Frequency - Switching | 60 kHz |
| Main Purpose | Primary Side, AC/DC |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 12 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Utilized IC / Part | VIPer28 |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| LCSC | Piece | 1 | $ 192.01 | |
| 200 | $ 76.61 | |||
| 500 | $ 74.05 | |||
| 1000 | $ 72.79 | |||
Description
General part information
EVLVIPER28 Series

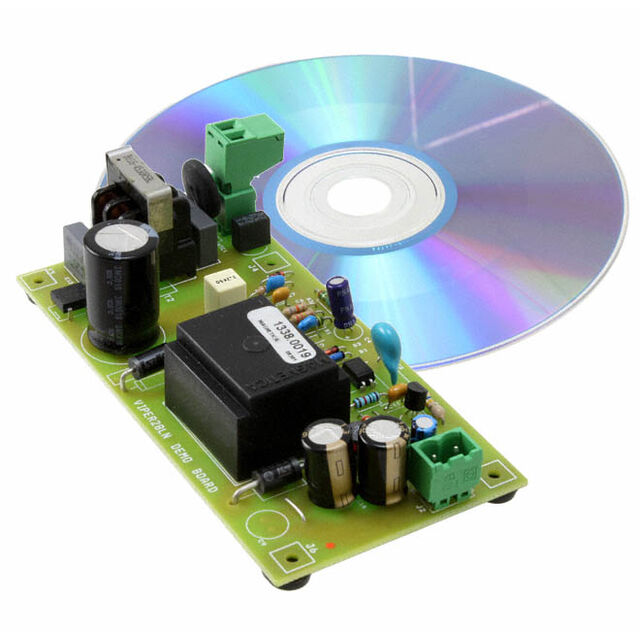

VIPer28 VIPER™ AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
