5304UL 002U1000

Active

Belden Inc.

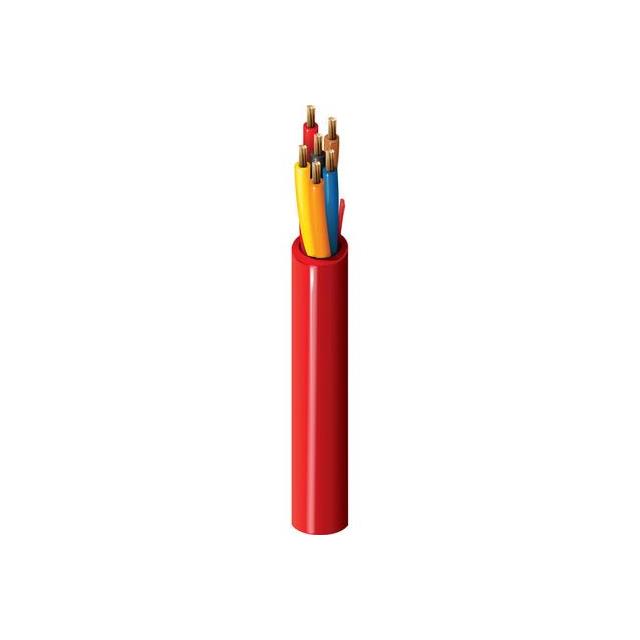

CABLE 6COND 18AWG RED

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 6COND 18AWG RED

Technical Specifications

Parameters and characteristics for this part

Specification	5304UL 002U1000

Cable Type	Multi-Conductor
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	0.22 in
Jacket (Insulation) Diameter [diameter]	5.59 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC), Riser
Jacket (Insulation) Thickness	0.432 mm
Jacket (Insulation) Thickness	0.017 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Ratings	UL Style FPLR
Usage	Alarm, Safety
Voltage	300 V
Wire Gauge	18 AWG

Part	Cable Type	Usage	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Wire Gauge	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Voltage	Ratings	Features	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 5304UL 002U1000	Multi-Conductor	Alarm Safety	Copper Bare	0.432 mm	0.017 in	1000 ft	304.8 m	18 AWG	Red	0.22 in	5.59 mm	Polypropylene (PP)	Poly-Vinyl Chloride (PVC) Riser	300 V	UL Style FPLR	Rip Cord	6	26 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.65
LCSC	Piece	1	$ 0.27

General part information

6 Conductor Multi-Conductor Cable Red 18 AWG 1000.0' (304.8m)
