1060875-1
ActiveTE Connectivity AMP Connectors
CONN MCX PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
1060875-1
ActiveTE Connectivity AMP Connectors
CONN MCX PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1060875-1 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | RD-316 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | MCX |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Snap-On |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |

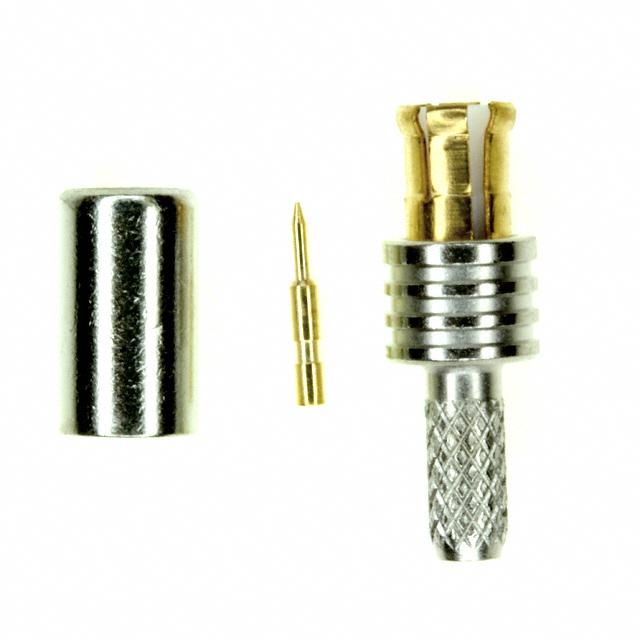

| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.1 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
| Voltage Rating | 335 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
1060875 Series
CONN MCX PLUG STR 50 OHM CRIMP
| Part | Frequency - Max [Max] | Cable Group | Body Material | Mounting Type | Housing Color | Body Finish | Number of Ports | Mating Cycles | Connector Type | Contact Termination | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Impedance | Center Contact Plating | Includes | Insertion Loss | Dielectric Material | Shield Termination | Voltage Rating | Center Contact Material | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1060875-1 | 6000 MHz | RD-316 | Brass | Free Hanging (In-Line) | Silver | Nickel | 1 | 500 | Male Pin, Plug | Crimp | -65 ░C | 165 °C | MCX | 50 Ohms | Gold | 1 Connector, 1 Contact, 1 Ferrule | 0.1 dB | Polytetrafluoroethylene (PTFE) | Crimp | 335 V | Brass | Snap-On |
Description
General part information
1060875 Series
MCX Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
