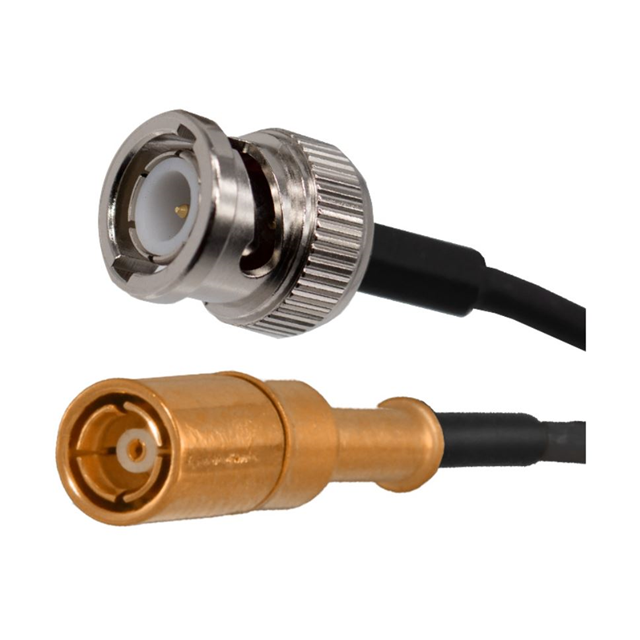

415-0200-M1.0

Active

Cinch Connectivity Solutions Johnson

CBL ASSY BNC-SMB PLUG-PLUG 3.3'

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

CBL ASSY BNC-SMB PLUG-PLUG 3.3'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to SMB RG-174 39.4" (1.0m) 3.3'

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

CBL ASSY BNC-SMB PLUG-PLUG 5'

Part	2nd Connector	Length	Length	Length	Connector Impedance	2nd Contact Gender	1st Connector	Cable Impedance	Cable Type	2nd Connector Mounting Type	Overall Impedance	1st Contact Gender	Style	Features	Color	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	1st Connector Mounting Type
Cinch Connectivity Solutions Johnson 415-0200-060	SMB Plug	5 ft	1.5 m	5 '	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
Cinch Connectivity Solutions Johnson 415-0200-036	SMB Plug		91.44 cm	36 in	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
Cinch Connectivity Solutions Johnson 415-0200-MM500	SMB Plug		50 cm	19.69 "	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
Cinch Connectivity Solutions Johnson 415-0200-120	SMB Plug	10 '	3 m	10 ft	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
Cinch Connectivity Solutions Johnson 415-0200-M1.0	SMB Plug	3.3 ft	1 m	39.4 in	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
Cinch Connectivity Solutions Johnson 415-0200-M2.0	SMB Plug	6.6 ft	2 m	78.7 in	50 Ohms	Female	BNC Plug	50 Ohms	RG-174	Free Hanging (In-Line)	50 Ohms	Male	BNC to SMB	Shielded	Black	1 GHz	-40 °C	80 C	Free Hanging (In-Line)
