B13JJVCF

Active

NKK Switches

SUBMINIATURE FULLY ILLUMINATED TOGGLE

Search across all available documentation for this part.

Active

NKK Switches

SUBMINIATURE FULLY ILLUMINATED TOGGLE

Technical Specifications

Parameters and characteristics for this part

Specification	B13JJVCF

Actuator Length [x]	6.3 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	SPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Illuminated
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	3.3 VDC, 1.95 VDC
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Off-On
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Current Rating (Amps)	Electrical Life	Voltage Rating - AC	Illumination Type, Color	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Features	Termination Style	Switch Function	Illumination	Actuator Material	Actuator Length [x]	Voltage Rating - DC	Circuit	Bushing Thread	Illumination Voltage (Nominal)
NKK Switches B13JJHCF	0.4 VA	50000 Cycles	28 V	Green/Red LED	Through Hole Right Angle	55 °C	-25 °C	Standard Round	Epoxy Sealed Terminals	PC Pin	On-Off-On	Illuminated	Nylon Polyamide (PA)	6.3 mm	28 V	SPDT	Unthreaded	1.95 VDC 3.3 VDC
NKK Switches B13JJVCF	0.4 VA	50000 Cycles	28 V	Green/Red LED	Right Angle Through Hole Vertical	55 °C	-25 °C	Standard Round	Epoxy Sealed Terminals	PC Pin	On-Off-On	Illuminated	Nylon Polyamide (PA)	6.3 mm	28 V	SPDT	Unthreaded	1.95 VDC 3.3 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

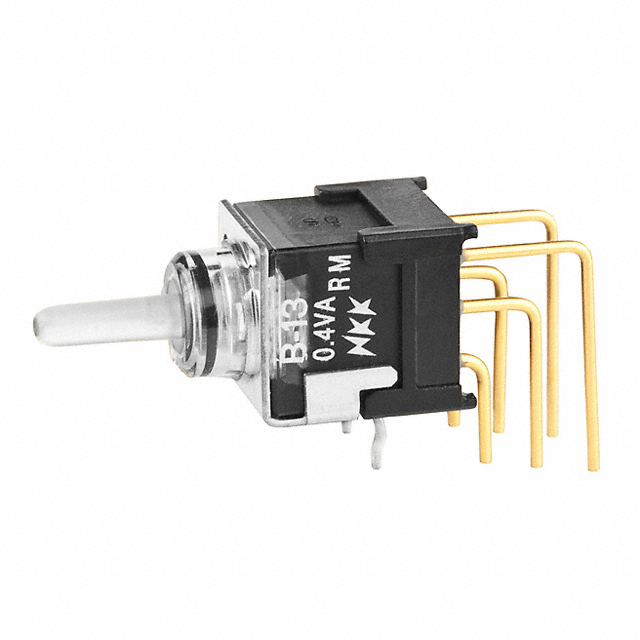

Toggle Switch SPDT Through Hole, Right Angle, Vertical
