CONMMCX002

Active

TE Connectivity Linx

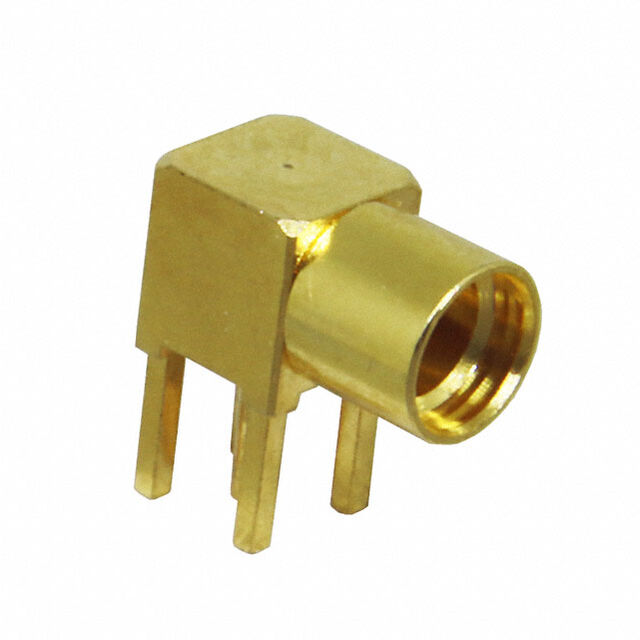

CONN MMCX RCPT R/A 50 OHM PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CONMMCX002

Active

TE Connectivity Linx

CONN MMCX RCPT R/A 50 OHM PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CONMMCX002

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	MMCX
Connector Type	Receptacle, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Insertion Loss	0.3 dB
Mating Cycles	500
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	170 V

CONMMCX Series

Part	Contact Termination	Frequency - Max [Max]	Connector Style	Includes	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Insertion Loss	Number of Ports	Body Finish	Cable Group	Mating Cycles	Center Contact Plating	Dielectric Material	Mounting Type	Housing Color	Connector Type	Center Contact Material	Impedance	Body Material	Shield Termination
TE Connectivity Linx CONMMCX012	Solder	6000 MHz	MMCX	1 Connector 1 End Cap 1 Ferrule 1 Heat Shrink 1 Insulator	170 V	-65 ░C	165 °C	Snap-On	0.3 dB	1	Gold	RG-174	500	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	Gold	Male Pin Plug	Brass	50 Ohms	Brass	Crimp
TE Connectivity Linx CONMMCX002-SMD-T	Solder	6000 MHz	MMCX		750 VDC	-65 ░C	165 °C	Snap-On		1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Surface Mount Right Angle	Gold	Female Socket Receptacle	Beryllium Copper	50 Ohms	Brass	Solder
TE Connectivity Linx CONMMCX011-R178	Crimp Solder	6000 MHz	MMCX	1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support	170 V	-65 ░C	165 °C	Snap-On	0.2 dB	1	Gold	RG-178	500	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Female Socket Receptacle	Beryllium Copper	50 Ohms	Brass	Crimp
TE Connectivity Linx CONMMCX007	Solder	6000 MHz	MMCX		170 V	-65 ░C	165 °C	Snap-On	0.2 dB	1	Gold	RG-174	500	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Male Pin Plug	Brass	50 Ohms	Brass	Crimp
TE Connectivity Linx CONMMCX013	Solder	8.5 GHz	MMCX		250 VDC	-65 ░C	165 °C	Snap-On		1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount	Gold	Female Socket Jack	Beryllium Copper	50 Ohms	Brass	Solder
TE Connectivity Linx CONMMCX013-T	Solder	8.5 GHz	MMCX		250 VDC	-65 ░C	165 °C	Snap-On		1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Board Edge Cutout Surface Mount	Gold	Female Socket Jack	Beryllium Copper	50 Ohms	Brass	Solder
TE Connectivity Linx CONMMCX007-R178	Crimp Solder	6000 MHz	MMCX	1 Connector 1 Contact 1 Heat Shrink 1 Spacer 1 Support	170 V	-65 ░C	165 °C	Snap-On	0.2 dB	1	Gold	RG-178	500	Gold	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line)	Gold	Male Pin Plug	Beryllium Copper	50 Ohms	Brass	Crimp
TE Connectivity Linx CONMMCX001-SMD-T	Solder	6000 MHz	MMCX		1000 VDC	-65 ░C	165 °C	Snap-On		1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Surface Mount	Gold	Female Socket Receptacle	Beryllium Copper	50 Ohms	Brass	Solder
TE Connectivity Linx CONMMCX001	Solder	6000 MHz	MMCX		170 V	-65 ░C	165 °C	Snap-On	0.2 dB	1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Through Hole	Gold	Female Socket Receptacle	Beryllium Copper	50 Ohms	Brass	Solder
TE Connectivity Linx CONMMCX002	Solder	6000 MHz	MMCX		170 V	-65 ░C	165 °C	Snap-On	0.3 dB	1	Gold		500	Gold	Polytetrafluoroethylene (PTFE)	Through Hole Right Angle	Gold	Female Socket Receptacle	Beryllium Copper	50 Ohms	Brass	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.58
		250	$ 4.18
		500	$ 3.90
		1000	$ 3.67

Description

General part information

CONMMCX Series

MMCX Connector Receptacle, Female Socket 50 Ohms Through Hole, Right Angle Solder
