EN2C5F26G1W

Active

Switchcraft Inc.

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C5F26G1W

Active

Switchcraft Inc.

CONN PLUG FMALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 9.18

Description

General part information

EN2C5F Series

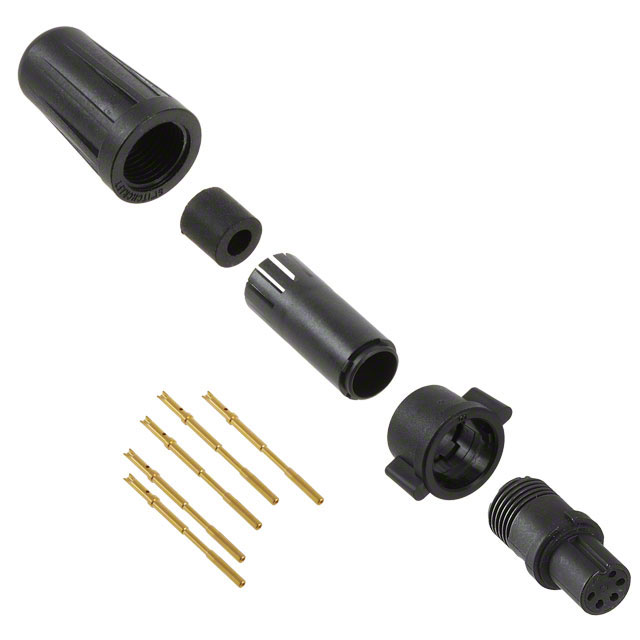

5 Position Circular Connector Plug, Female Sockets Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C5F26G1W	EN2C5F Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening [custom]	3.56 mm, 2.54 mm	2.54 - 3.56 mm
Cable Opening [custom]	0.14 in, 0.1 in	0.1 - 0.14 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell, Winged	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C5F Series

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Ingress Protection	Mounting Type	Applications	Material Flammability Rating	Shielding	Primary Material	Fastening Type	Termination	Backshell Material, Plating	Contact Material	Orientation	Voltage Rating	Connector Type	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Insert Material	Features	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. EN2C5F26G2	IP66, IP67, IP68	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets, Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell, Coupling Nut	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C5F26G1	IP66, IP67, IP68	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets, Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell, Coupling Nut					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C5F26G1W	IP66, IP67, IP68	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets, Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell, Coupling Nut, Winged					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C5F26DC	IP66, IP67, IP68	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets, Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell, Coupling Nut
Switchcraft Inc. EN2C5F26DCW	IP66, IP67, IP68	Free Hanging (In-Line)	Communication Systems, Industrial, Marine, Medical	UL94 V-0	Unshielded	Plastic	Bayonet Lock	Crimp, Solder Cup	Thermoplastic	Copper Alloy	Keyed	125 VAC	Female Sockets, Plug	Black	Gold	85 °C	-40 °C	Elastomer	Backshell, Coupling Nut, Winged
