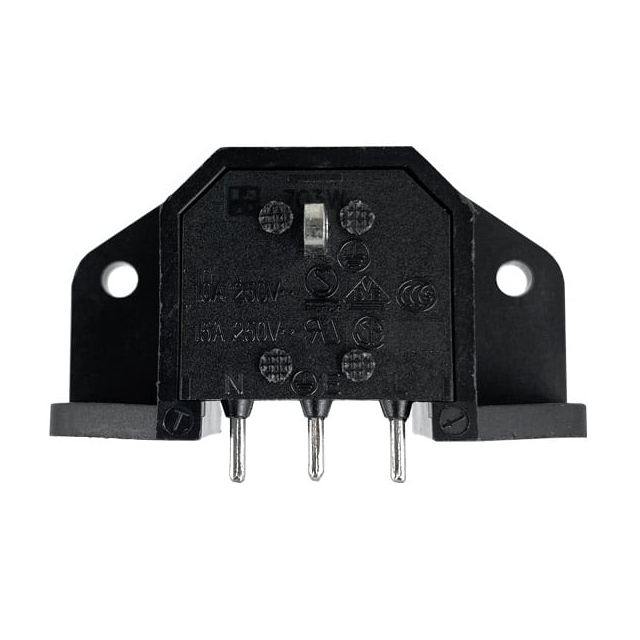

703W-00/52
ActiveQualtek
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
703W-00/52
ActiveQualtek
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 703W-00/52 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Features | Terminating Cover |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 31.3 mm |
| Panel Cutout Dimensions [y] | 23.3 mm |
| Panel Thickness | 3 mm |
| Panel Thickness | 0.118 in |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
703W-00 Series
| Part | Voltage Rating - Appliance Inlet | Approval Agency | Features | Current Rating - Appliance Inlet | Mounting Type | Panel Cutout Dimensions | Connector Style | Termination | Accomodates a Fuse | Connector Type | Filter Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Panel Thickness | Panel Thickness | Termination | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Qualtek | 250 VAC | CSA UL VDE | Front or Rear Side Mount | 10 A | Flange Panel Mount | Variable Size | IEC 320-C14 | Solder Eyelet | Male Blades Receptacle | Unfiltered - Commercial | |||||||
Qualtek | 250 VAC | CSA UL VDE | 10 A | Panel Mount Flange Through Hole Right Angle | IEC 320-C14 | Solder | Male Blades Receptacle | Unfiltered - Commercial | 31.3 mm | 23.3 mm | 3 mm | 0.118 in | |||||
Qualtek | 250 VAC | CSA UL VDE | 10 A | Panel Mount Flange Through Hole Right Angle | IEC 320-C14 | Solder | Male Blades Receptacle | Unfiltered - Commercial | 31.1 mm | 23.3 mm | 3 mm | 0.118 in | |||||
Qualtek | 250 VAC | CCC CSA UL VDE | Front or Rear Side Mount | 10 A | Flange Panel Mount | Variable Size | IEC 320-C14 | Quick Connect | Male Blades Receptacle | Unfiltered - Commercial | 0.25 in | 6.3 mm | |||||
Qualtek | 250 VAC | CSA UL VDE | 10 A | Flange Panel Mount | IEC 320-C14 | Solder Eyelet | Male Blades Receptacle | Unfiltered - Commercial | 30.5 mm | 22.5 mm | |||||||
Qualtek | 250 VAC | CSA UL VDE | 10 A | Flange Panel Mount | IEC 320-C14 | Quick Connect | Male Blades Receptacle | Unfiltered - Commercial | 30.5 mm | 22.5 mm | 0.189 " 4.8 mm | ||||||
Qualtek | 250 VAC | CSA UL VDE | Terminating Cover | 10 A | Panel Mount Flange Through Hole Right Angle | IEC 320-C14 | Solder | Male Blades Receptacle | Unfiltered - Commercial | 31.3 mm | 23.3 mm | 3 mm | 0.118 in | ||||
Qualtek | 250 VAC | CSA UL VDE | Front or Rear Side Mount | 10 A | Flange Panel Mount | Variable Size | IEC 320-C14 | Quick Connect | Male Blades Receptacle | Unfiltered - Commercial | 0.189 " 4.8 mm | ||||||
Qualtek | 250 VAC | CSA UL VDE | Front or Rear Side Mount | 10 A | Flange Panel Mount | Variable Size | IEC 320-C14 | Quick Connect | Male Blades Receptacle | Unfiltered - Commercial | 0.25 in | 6.3 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.04 | |
| 10 | $ 1.56 | |||
| 25 | $ 1.40 | |||
| 50 | $ 1.29 | |||
| 100 | $ 1.20 | |||
| 250 | $ 1.08 | |||
| 500 | $ 1.01 | |||
| 1000 | $ 0.94 | |||
| 2500 | $ 0.86 | |||
Description
General part information
703W-00 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
