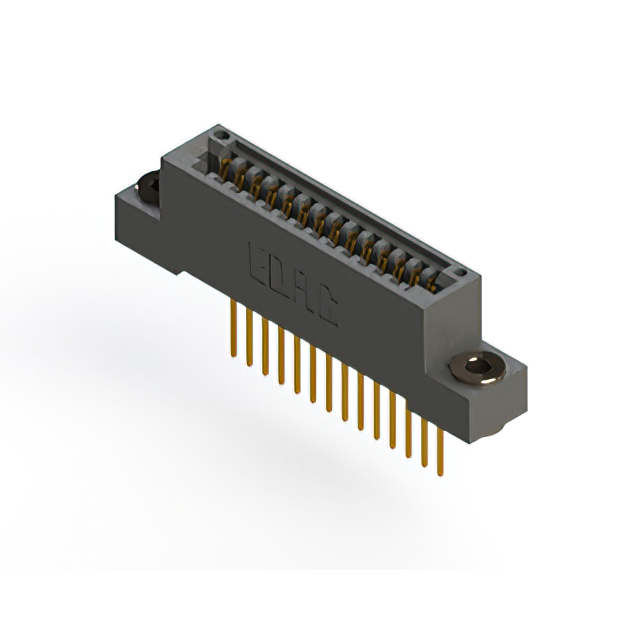

895-014-540-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 14POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
895-014-540-103
ActiveEDAC Inc.
CONN EDGE SINGLE FML 14POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 895-014-540-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
895-014 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Material - Insulation | Contact Finish | Read Out | Flange Feature | Termination Rows | Contact Type | Card Type | Number of Rows | Contact Finish Thickness | Contact Finish Thickness | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Number of Positions/Bay/Row [custom] | Pitch [x] | Pitch [x] | Number of Positions | Mounting Type | Color | Contact Material | Flange Feature | Flange Feature | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Dual | 4-40 Flush Mount Threaded Insert Top Opening | 2 | Cantilever | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Wire Wrap | 7 | 2.54 mm | 0.1 in | 14 | Through Hole | Black | Copper Alloy | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Single | 1 | Cantilever | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Wire Wrap | 14 | 2.54 mm | 0.1 in | 14 | Through Hole | Black | Copper Alloy | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Single | 1 | Cantilever | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 14 | 2.54 mm | 0.1 in | 14 | Through Hole Right Angle | Black | Copper Alloy | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Dual | 2 | Cantilever | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 7 | 2.54 mm | 0.1 in | 14 | Board Edge Straddle Mount | Black | Copper Alloy | 3.25 mm | 0.128 in | Card Extender | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Single | Flush Mount Top Opening Unthreaded | 1 | Cantilever | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Wire Wrap | 14 | 2.54 mm | 0.1 in | 14 | Through Hole | Black | Copper Alloy | 3.25 mm | 0.128 " | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Dual | Flush Mount Top Opening Unthreaded | 2 | Cantilever | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 7 | 2.54 mm | 0.1 in | 14 | Board Edge Straddle Mount | Black | Copper Alloy | Card Extender | 3.25 mm | 0.128 " | ||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Single | Side Mount Opening Unthreaded | 1 | Cantilever | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 14 | 2.54 mm | 0.1 in | 14 | Through Hole Right Angle | Black | Copper Alloy | 3.25 mm | 0.128 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Dual | Floating Bobbin Top Mount Opening | 2 | Cantilever | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 7 | 2.54 mm | 0.1 in | 14 | Through Hole Right Angle | Black | Copper Alloy | 2.95 mm | 0.116 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Dual | Top Mount Opening Unthreaded | 2 | Cantilever | Non Specified - Dual Edge | 2 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Solder | 7 | 2.54 mm | 0.1 in | 14 | Through Hole | Black | Copper Alloy | 3.96 mm | 0.156 in | |||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Polyphenylene Sulfide (PPS) | Gold | Single | Floating Bobbin Flush Mount | 1 | Cantilever | Non Specified - Single Edge | 1 | 10 Áin | 0.25 Ám | Female | 125 °C | -40 °C | Wire Wrap | 14 | 2.54 mm | 0.1 in | 14 | Through Hole | Black | Copper Alloy | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
895-014 Series
14 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
