PTM902-020K-103B1

Active

Bourns Inc.

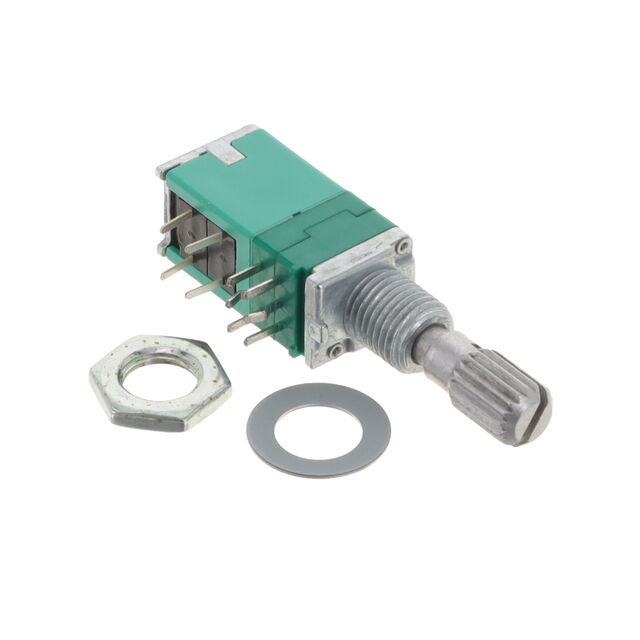

POT 10K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PTM902-020K-103B1

Active

Bourns Inc.

POT 10K OHM 1/20W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PTM902-020K-103B1

Actuator Diameter [diameter]	0.236 in
Actuator Diameter [diameter]	6 mm
Actuator Length [z]	20 mm
Actuator Length [z]	0.787 in
Actuator Type	Knurled and Slotted
Adjustment Type	Side Adjustment
Built in Switch	Push-Push, SPDT
Bushing Thread	0.75
Bushing Thread	M7
Number of Gangs	2
Number of Turns	1
Power (Watts)	0.05 W
Power (Watts)	50 mW
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [x]	0.447 in
Size - Body [x]	11.35 mm
Size - Body [y]	0.374 in
Size - Body [y]	9.5 mm
Taper	Linear
Termination Style	Board Locks, PC Pins
Tolerance	20 %

PTM902 Series

Part	Adjustment Type	Taper	Bushing Thread	Bushing Thread	Built in Switch	Actuator Length [z]	Actuator Length [z]	Actuator Type	Tolerance	Power (Watts)	Power (Watts)	Resistance (Ohms)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Resistive Material	Size - Body [y]	Size - Body [x]	Size - Body [y]	Size - Body [x]	Termination Style	Number of Gangs	Rotation	Number of Turns	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Resistance (Ohms)
Bourns Inc. PTM902-020F-104B2	Side Adjustment	Linear	0.75	M7	Push-Push SPDT	20 mm	0.787 in	Flatted	20 %	0.05 W	50 mW	100 kOhms	0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1
Bourns Inc. PTM902-025K-503A2	Side Adjustment	Logarithmic	0.75	M7	Push-Push SPDT			Knurled and Slotted	20 %	0.025 W		50 kOhms	0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1	0.984 in	25 mm	0.025 W
Bourns Inc. PTM902-120K-503B2	Side Adjustment	Linear	0.75	M7		20 mm	0.787 in	Knurled and Slotted	20 %	0.05 W	50 mW	50 kOhms	0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1
Bourns Inc. PTM902-125S-103B2	Side Adjustment	Linear	0.75	M7				Slotted	20 %	0.05 W	50 mW		0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1	0.984 in	25 mm		10k
Bourns Inc. PTM902-020K-204A2	Side Adjustment	Logarithmic	0.75	M7	Push-Push SPDT	20 mm	0.787 in	Knurled and Slotted	20 %	0.025 W			0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1			0.025 W
Bourns Inc. PTM902-020K-103B1	Side Adjustment	Linear	0.75	M7	Push-Push SPDT	20 mm	0.787 in	Knurled and Slotted	20 %	0.05 W	50 mW		0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1				10k
Bourns Inc. PTM902-020K-504A2	Side Adjustment	Logarithmic	0.75	M7	Push-Push SPDT	20 mm	0.787 in	Knurled and Slotted	30 %	0.025 W		500 kOhms	0.236 in	6 mm	Carbon	0.374 in	0.447 in	9.5 mm	11.35 mm	Board Locks PC Pins	2	300 ░	1			0.025 W
