950-1/2"X60YD

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X60YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE ADHSV TRNSFR CLR 1/2"X60YDS

Technical Specifications

Parameters and characteristics for this part

Specification	950-1/2"X60YD

Adhesive	Acrylic, 300
Backing, Carrier	Liner
Color	Clear
Length	60 yds
Length	55 m
Length	180 ft
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature	70 °F
Storage/Refrigeration Temperature	21 °C
Tape Type	Adhesive Transfer
Temperature Range	82 °C
Temperature Range	180 °F
Thickness	0.127 mm
Thickness	5 mils
Thickness	0.005 in
Thickness - Adhesive	5 mils
Thickness - Adhesive	0.005 "
Thickness - Adhesive	0.127 mm
Usage	General Purpose, Splicing, Adhesion
Width	0.5 in
Width	12.7 mm
Width	0.5 in

Part	Shelf Life	Tape Type	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Thickness	Thickness	Thickness	Temperature Range	Temperature Range	Adhesive	Usage	Color	Length	Length	Length	Width [x]	Width [x]	Backing, Carrier	Shelf Life Start	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Width	Width
3M (TC) 950-24"X60YD	24 Months	Adhesive Transfer	70 °F	21 °C	0.127 mm	5 mils	0.005 in	82 °C	180 °F	Acrylic 300	Adhesion General Purpose Splicing	Clear	60 yds	55 m	180 ft	609.6 mm	24 in	Liner	Date of Manufacture	5 mils	0.005 "	0.127 mm
3M (TC) 950-16"X60YD	24 Months	Adhesive Transfer	70 °F	21 °C	0.127 mm	5 mils	0.005 in	82 °C	180 °F	Acrylic 300	Adhesion General Purpose Splicing	Clear	60 yds	55 m	180 ft	406.4 mm	16 in	Liner	Date of Manufacture	5 mils	0.005 "	0.127 mm
3M (TC) 950-1/2"X60YD	24 Months	Adhesive Transfer	70 °F	21 °C	0.127 mm	5 mils	0.005 in	82 °C	180 °F	Acrylic 300	Adhesion General Purpose Splicing	Clear	60 yds	55 m	180 ft			Liner	Date of Manufacture	5 mils	0.005 "	0.127 mm	0.5 in	12.7 mm	0.5 in
3M (TC) 950-1"X60YD	24 Months	Adhesive Transfer	70 °F	21 °C	0.127 mm	5 mils	0.005 in	82 °C	180 °F	Acrylic 300	Adhesion General Purpose Splicing	Clear	60 yds	55 m	180 ft	25.4 mm	1 in	Liner	Date of Manufacture	5 mils	0.005 "	0.127 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

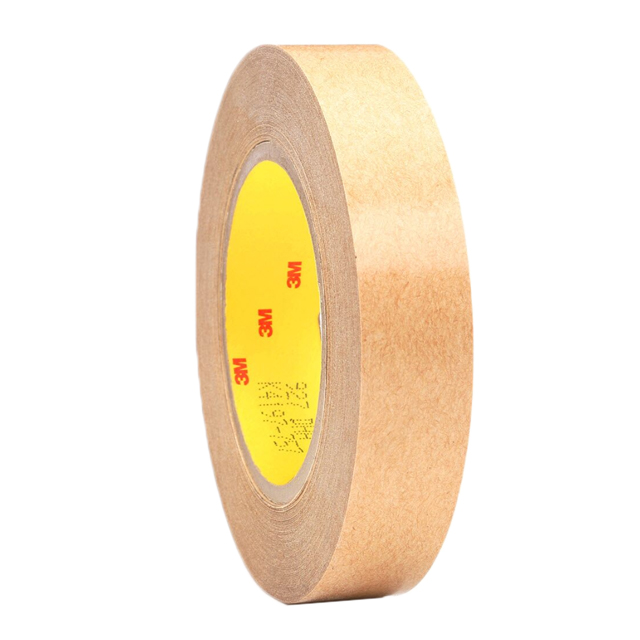

Adhesive Transfer Tape Acrylic, 300 Adhesive Clear 0.50" (12.70mm) 1/2" X 180' (55.0m) 60 yds

Technical documentation and resources
