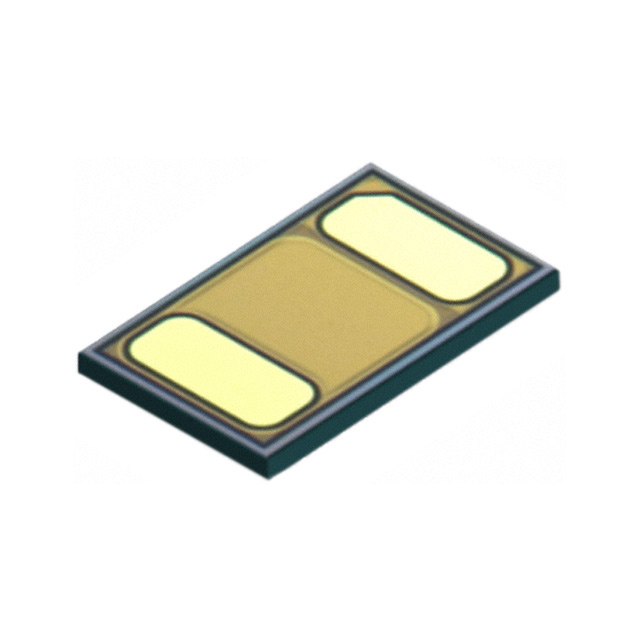

DB2G42600L1
UnknownPanasonic Industrial Automation Sales
DIODE SCHOTTKY 40V 1A 0402
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DB2G42600L1
UnknownPanasonic Industrial Automation Sales
DIODE SCHOTTKY 40V 1A 0402
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DB2G42600L1 |
|---|---|
| Capacitance @ Vr, F | 28 pF |
| Current - Average Rectified (Io) | 1 A |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150 °C |
| Package / Case | 0402 (1005 Metric) |
| Reverse Recovery Time (trr) | 8.7 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | DCSP1006010-N1 |
| Technology | Schottky |
| Voltage - DC Reverse (Vr) (Max) [Max] | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 600 mV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.11 | |
| 2000 | $ 0.10 | |||
| 5000 | $ 0.10 | |||
| 10000 | $ 0.09 | |||
| 25000 | $ 0.09 | |||
| 50000 | $ 0.07 | |||
| 100000 | $ 0.07 | |||
Description
General part information
DB2G426 Series
Diode 40 V 1A Surface Mount DCSP1006010-N1
