0041.9151.5307

Active

SCHURTER Inc.

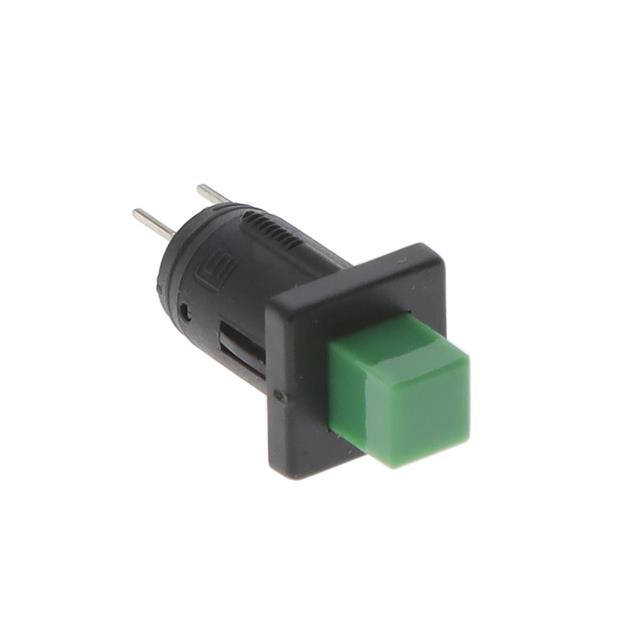

SWITCH PUSH SPST-NO 200MA 60V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSH SPST-NO 200MA 60V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Standard Panel Mount, Front

Technical documentation and resources

Specification	0041.9151.5307	0041.9151 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Button, Square	Round, Button, Square
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Green	Black, Green
Current Rating (Amps)	200 mA	200 mA
Electrical Life	10000 Cycles	10000 Cycles
Ingress Protection	IP40	IP40
Mechanical Life	10000 Steps	10000 Steps
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	8 mm	8 mm
Switch Function	Off-On	Off-On
Termination Style	PC Pin	PC Pin
Type	Standard	Standard
Voltage Rating - AC	60 V	60 V
Voltage Rating - DC	50 VDC	50 VDC

Part	Current Rating (Amps)	Color - Actuator/Cap	Actuator Marking	Termination Style	Mechanical Life	Electrical Life	Actuator Type	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Panel Cutout Dimensions [diameter]	Ingress Protection	Voltage Rating - AC	Circuit	Switch Function	Type
SCHURTER Inc. 0041.9151.7107	200 mA	Black	No Marking	PC Pin	10000 Steps	10000 Cycles	Button, Round	50 VDC	-25 °C	85 °C	Panel Mount, Front	8 mm	IP40	60 V	SPST-NO	Off-On	Standard
SCHURTER Inc. 0041.9151.5307	200 mA	Green	No Marking	PC Pin	10000 Steps	10000 Cycles	Button, Square	50 VDC	-25 °C	85 °C	Panel Mount, Front	8 mm	IP40	60 V	SPST-NO	Off-On	Standard
