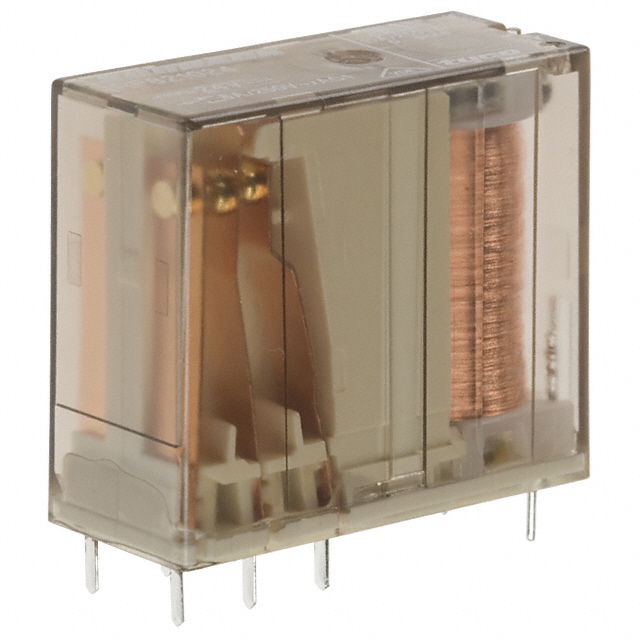

RP841024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 8A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RP841024
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE DPST 8A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RP841024 |
|---|---|
| Approval Agency | cURus, VDE |
| Coil Current | 21.8 mA |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | DPST-NO (2 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 8 A |
| Load - Max Switching | 3200 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 16.8 VDC |
| Must Release Voltage | 2.4 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 3 ms |
| Seal Rating | Sealed - Fully |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 500 | $ 10.02 | |
Description
General part information
RP8410 Series
General Purpose Relay DPST-NO (2 Form A) 24VDC Coil Through Hole
