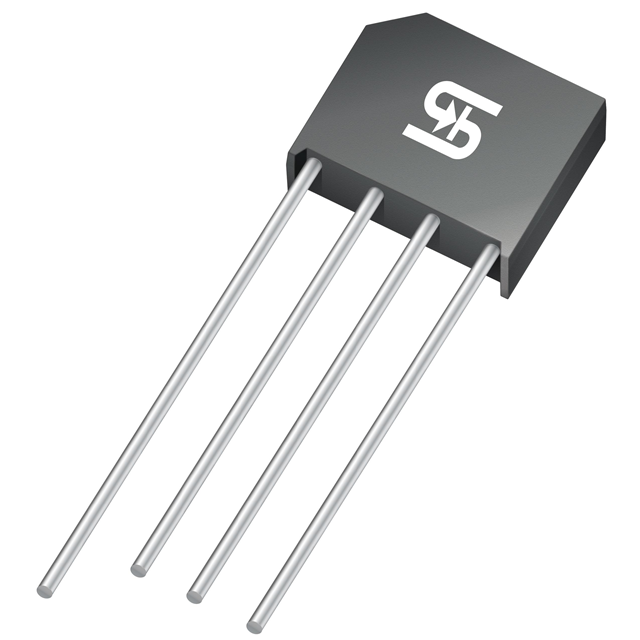

KBL401G T0

Unknown

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 50V 4A KBL

Search across all available documentation for this part.

Unknown

Taiwan Semiconductor Corporation

BRIDGE RECT 1PHASE 50V 4A KBL

Technical Specifications

Parameters and characteristics for this part

Specification	KBL401G T0

Current - Average Rectified (Io)	4 A
Current - Reverse Leakage @ Vr	10 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	KBL, 4-SIP
Supplier Device Package	KBL
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	50 V

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max) [Max]	Package / Case	Current - Average Rectified (Io)	Technology
Taiwan Semiconductor Corporation KBL401G T0	KBL	-55 °C	150 °C	Single Phase	10 µA	Through Hole	1.1 V	50 V	4-SIP KBL	4 A	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Single Phase Standard 50 V Through Hole KBL

Technical documentation and resources

No documents available
