R75QN3220AA00K

Active

KEMET

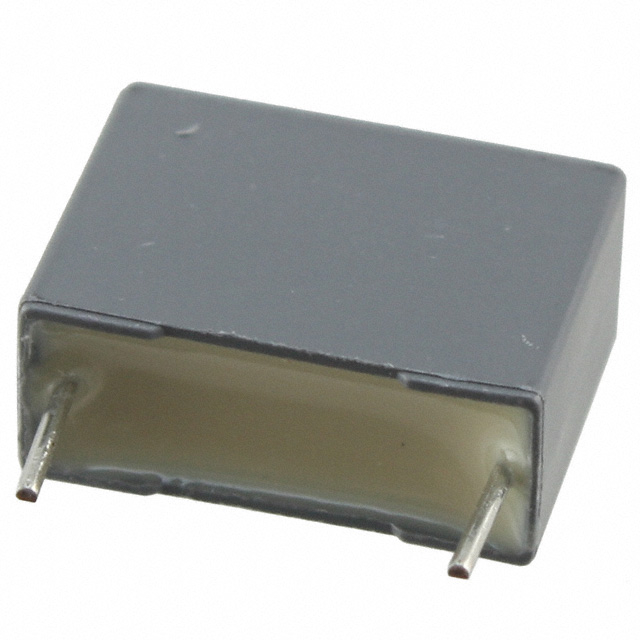

CAP FILM 0.22UF 10% 1KVDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R75QN3220AA00K +3

R75QN3220AA00K

Active

KEMET

CAP FILM 0.22UF 10% 1KVDC RADIAL

Deep-Dive with AI

DocumentsDatasheet R75QN3220AA00K +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R75QN3220AA00K

Applications	Automotive, High Frequency, Switching, High Pulse, DV/DT
Capacitance	0.22 µF
Dielectric Material	Metallized, Polypropylene (PP)
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Lead Spacing	22.5 mm
Lead Spacing	0.886 in
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Ratings	AEC-Q200
Size / Dimension [x]	26.5 mm
Size / Dimension [x]	1.043 in
Size / Dimension [y]	0.433 in
Size / Dimension [y]	11 mm
Termination	PC Pins
Tolerance	10 %
Voltage Rating - AC	250 V
Voltage Rating - DC	1 kVDC
Voltage Rating - DC	1 kV

R75QN Series

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage Rating - AC	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage Rating - DC	Voltage Rating - DC	Dielectric Material	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Ratings	Package / Case	Lead Spacing	Lead Spacing	Tolerance	Termination	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]
KEMET R75QN31004000J	7 mm	0.276 in	1.043 in	26.5 mm	250 V	Through Hole	105 ░C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	100000 pF	16.1 mm	0.634 in	AEC-Q200	Radial	22.5 mm	0.886 in	5 %	PC Pins
KEMET R75QN33305000J	13 mm	0.512 in	1.043 in	26.5 mm	250 V	Through Hole	105 ░C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	0.33 µF			AEC-Q200	Radial	22.5 mm	0.886 in	5 %	PC Pins	9.6 mOhms	0.87 in	22.1 mm
KEMET R75QN3220AA00K	11 mm	0.433 in	1.043 in	26.5 mm	250 V	Through Hole	105 ░C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	0.22 µF			AEC-Q200	Radial	22.5 mm	0.886 in	10 %	PC Pins		0.787 "	20 mm
KEMET R75QN310050H0J	7 mm	0.276 in	1.043 in	26.5 mm	250 V	Through Hole	125 °C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	100000 pF	16.1 mm	0.634 in	AEC-Q200	Radial	22.5 mm	0.886 in	5 %	PC Pins	27.1 mOhms
KEMET R75QN315050H0J	10 mm	0.394 in	1.043 in	26.5 mm	250 V	Through Hole	125 °C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	0.15 ÁF			AEC-Q200	Radial	22.5 mm	0.886 in	5 %	PC Pins	18 mOhms	0.732 in	18.6 mm
KEMET R75QN35605000J	0.571 in			1.043 "	250 V	Through Hole	105 ░C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	0.56 µF	29.6 mm	1.165 in	AEC-Q200	Radial	22.5 mm	0.886 in	5 %	PC Pins	11.4 mOhms			26.5 mm	14.5 mm
KEMET R75QN3150AA00K	10 mm	0.394 in	1.043 in	26.5 mm	250 V	Through Hole	105 ░C	-55 °C	Automotive High Frequency Switching High Pulse DV/DT	1 kVDC	1 kV	Metallized Polypropylene (PP)	0.15 ÁF			AEC-Q200	Radial	22.5 mm	0.886 in	10 %	PC Pins	18 mOhms	0.732 in	18.6 mm
