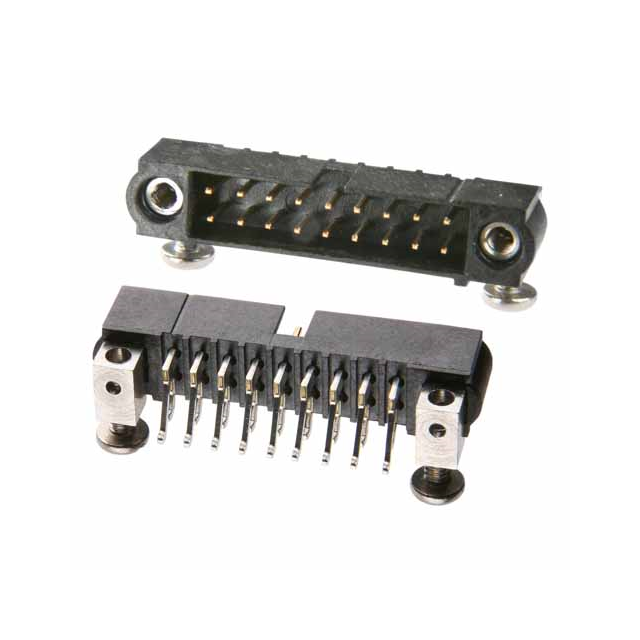

M80-5420805
ActiveHarwin Inc.
4+4 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
M80-5420805
ActiveHarwin Inc.
4+4 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-5420805 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 29.5 µin |
| Contact Finish Thickness - Post | 0.75 µm |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Features | Mounting Flange, Mating Flange, Mounting Hardware, Keying Slot |
| Insulation Color | Black |
| Insulation Height | 0.218 in |
| Insulation Height | 5.55 mm |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 8 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 800 VAC |
M80-542 Series
| Part | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Type | Voltage Rating | Insulation Height | Insulation Height | Connector Type | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Pitch - Mating [x] | Pitch - Mating [x] | Number of Positions Loaded | Number of Rows | Style | Shrouding | Contact Finish - Mating | Insulation Material | Features | Mounting Type | Material Flammability Rating | Contact Material | Termination | Number of Positions | Insulation Color | Contact Shape | Contact Finish - Post | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 3 µm | 118.1 µin | Male Pin | 800 V | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 20 | Black | Circular | Tin | -55 °C | 125 °C | 0.079 in | 2 mm | |
Harwin Inc. | 3 µm | 118.1 µin | Male Pin | 800 V | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 14 | Black | Circular | Tin | -55 °C | 125 °C | 0.079 in | 2 mm | |
Harwin Inc. | 3 µm | 118.1 µin | Male Pin | 800 V | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 6 | Black | Circular | Tin-Lead | -55 °C | 125 °C | 0.079 in | 2 mm | |
Harwin Inc. | 0.75 µm | Male Pin | 800 VAC | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 8 | Black | Circular | Gold | -55 °C | 125 °C | 0.079 in | 2 mm | 29.5 µin | |
Harwin Inc. | 3 µm | 118.1 µin | Male Pin | 800 V | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 50 | Black | Circular | Tin | -55 °C | 125 °C | 0.079 in | 2 mm | |
Harwin Inc. | 0.75 µm | Male Pin | 800 VAC | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 6 | Black | Circular | Gold | -55 °C | 125 °C | 0.079 in | 2 mm | 29.5 µin | |
Harwin Inc. | 3 µm | 118.1 µin | Male Pin | 800 V | 0.218 in | 5.55 mm | Header | 2.2 A | 29.5 Áin | 0.75 Ám | 0.079 in | 2 mm | All | 2 | Board to Board Cable | Shrouded - 4 Wall | Gold | Polyphenylene Sulfide (PPS) Glass Filled | Keying Slot Mating Flange Mounting Flange Mounting Hardware | Surface Mount Right Angle | UL94 V-0 | Copper Alloy | Solder | 20 | Black | Circular | Tin-Lead | -55 °C | 125 °C | 0.079 in | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-542 Series
Connector Header Surface Mount, Right Angle 8 position 0.079" (2.00mm)
