7504-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.

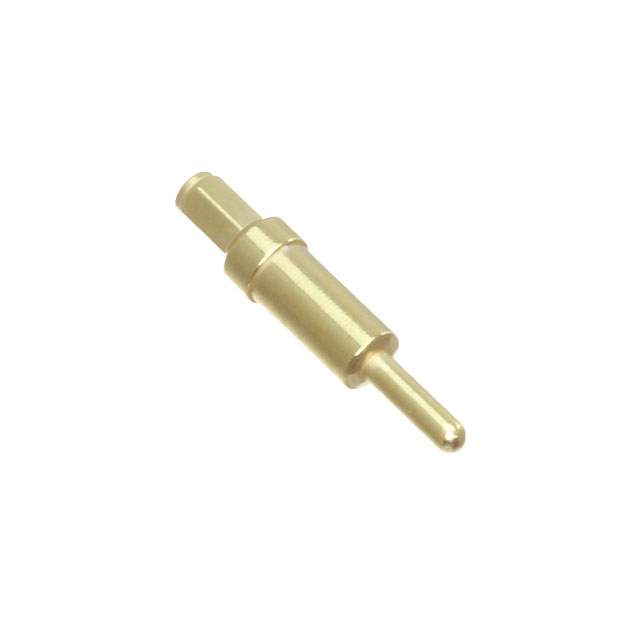

PRESS-FIT PCB PIN
Deep-Dive with AI
Search across all available documentation for this part.
7504-0-00-15-00-00-03-0
ActiveMill-Max Manufacturing Corp.
PRESS-FIT PCB PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7504-0-00-15-00-00-03-0 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Brass Alloy |
| Flange Diameter [diameter] | 2.36 mm |
| Flange Diameter [diameter] | 0.093 in |
| Insulation | Non-Insulated |
| Length - Above Flange [x] | 0.31 in |
| Length - Above Flange [x] | 7.87 mm |
| Length - Below Flange [x] | 0.1 in |
| Length - Below Flange [x] | 2.54 mm |
| Length - Overall [x] | 11.68 mm |
| Length - Overall [x] | 0.46 in |
| Mounting Hole Diameter [diameter] | 1.73 mm |
| Mounting Hole Diameter [diameter] | 0.068 in |
| Mounting Type | Through Hole |
| Pin Size - Above Flange [diameter] | 1.02 mm |
| Pin Size - Above Flange [diameter] | 0.04 in |
| Pin Size - Below Flange [diameter] | 1.47 mm |
| Pin Size - Below Flange [diameter] | 0.058 in |
| Terminal Style | Single End |
| Terminal Type | PC Pin |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.41 | |||
| 25 | $ 0.36 | |||
| 50 | $ 0.33 | |||
| 100 | $ 0.32 | |||
| 250 | $ 0.29 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.23 | |||
| 3000 | $ 0.21 | |||
Description
General part information
7504-0 Series
PC Pin Terminal Connector Through Hole Gold 0.040" (1.02mm) Dia
Documents
Technical documentation and resources
No documents available
