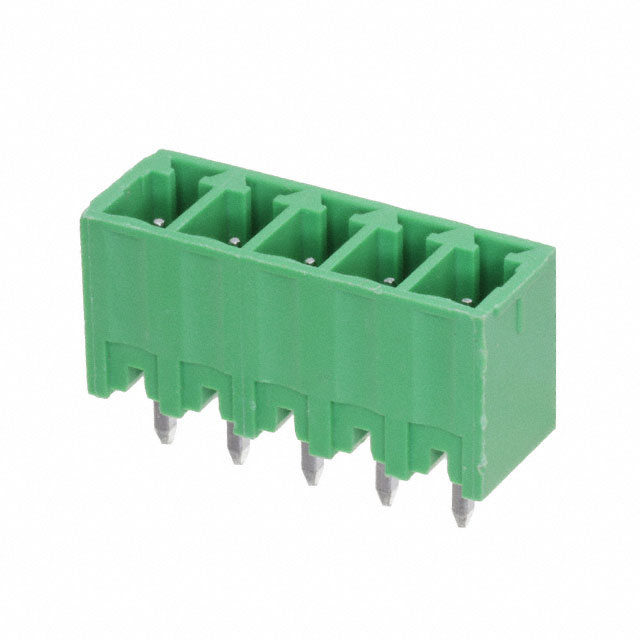

EB3-05-B-180

Active

Adam Tech

EURO BLOCK 5P

Search across all available documentation for this part.

Active

Adam Tech

EURO BLOCK 5P

Technical Specifications

Parameters and characteristics for this part

Specification	EB3-05-B-180

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - UL	10 A
Header Orientation	Vertical
Housing Material	Thermoplastic
Insulation Height	0.362 in
Insulation Height	9.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.15 in
Pitch [x]	3.81 mm
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

Part	Current - UL	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Header Orientation	Insulation Height	Insulation Height	Contact Tail Length	Contact Tail Length	Voltage - UL	Housing Material	Type	Color	Material Flammability Rating	Positions Per Level	Mounting Type	Contact Mating Finish	Number of Levels	Pitch [x]	Pitch [x]
Adam Tech EB3-05-B-180	10 A	Copper Alloy	-40 °C	115 °C	Solder	Vertical	0.362 in	9.2 mm	3.5 mm	0.138 in	300 V	Thermoplastic	Header Male Pins Shrouded (4 Side)	Green	UL94 V-0	5	Through Hole	Tin	1	0.15 in	3.81 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole
