NTE4000T

Active

NTE Electronics, Inc

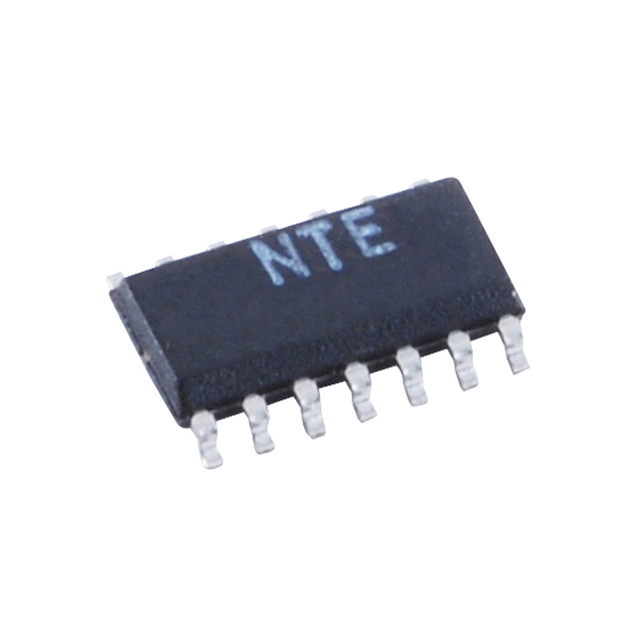

IC GATE NOR 3CH 3-INP 14SOIC

Search across all available documentation for this part.

Active

NTE Electronics, Inc

IC GATE NOR 3CH 3-INP 14SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	NTE4000T

Current - Output High, Low [custom]	4.2 mA
Current - Output High, Low [custom]	1.8 mA
Current - Quiescent (Max) [Max]	1 çA
Input Logic Level - High [Max]	12.5 V
Input Logic Level - High [Min]	4 V
Input Logic Level - Low [Max]	2.5 V
Input Logic Level - Low [Min]	1 V
Logic Type	NOR Gate
Max Propagation Delay @ V, Max CL	80 ns
Mounting Type	Surface Mount
Number of Circuits	3
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	3 V

Part	Max Propagation Delay @ V, Max CL	Input Logic Level - High [Max]	Input Logic Level - High [Min]	Logic Type	Current - Quiescent (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case [x]	Package / Case [y]	Package / Case	Number of Inputs	Number of Circuits	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package
NTE Electronics, Inc NTE4000T	80 ns	12.5 V	4 V	NOR Gate	1 çA	-55 °C	125 °C	0.154 in	3.9 mm	14-SOIC	3	3	2.5 V	1 V	4.2 mA	1.8 mA	Surface Mount	18 V	3 V
NTE Electronics, Inc NTE4000	80 ns	12.5 V	4 V	NOR Gate	1 çA	-55 °C	125 °C	0.3 "	7.62 mm	14-DIP	3	3	2.5 V	1 V	4.2 mA	1.8 mA	Through Hole	18 V	3 V	14-DIP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NOR Gate IC 3 Channel 14-SOIC

Technical documentation and resources

No documents available
