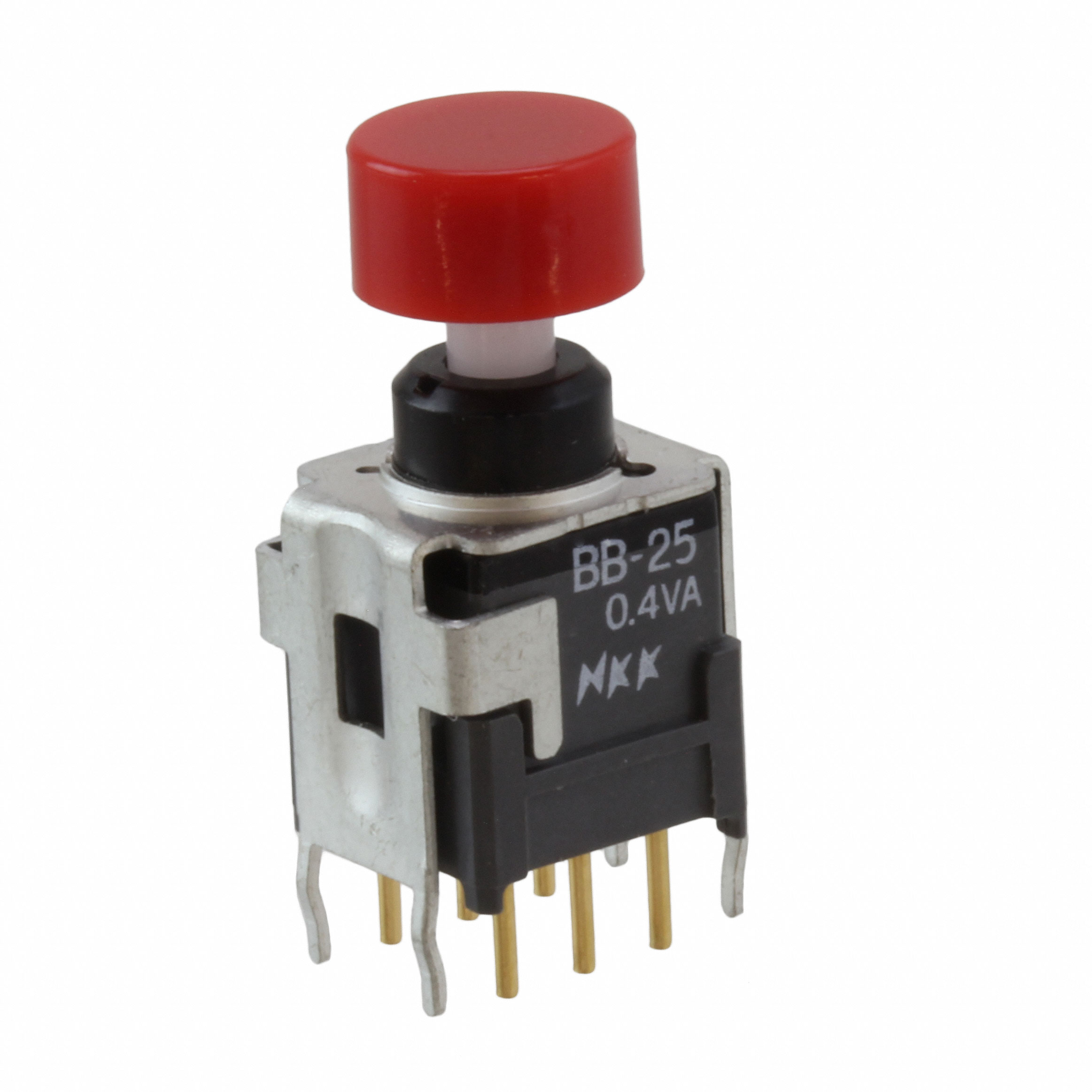

BB25AB-HC - BB25AB-HC

BB25AB-HC

Active
NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
BB25AB-HC - BB25AB-HC

BB25AB-HC

Active
NKK Switches

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics for this part

SpecificationBB25AB-HC
Actuator MarkingNo Marking
Actuator TypeRound, Button
CircuitDPDT
Color - Actuator/CapRed
Current Rating (Amps)0.4 VA
Electrical Life50000 Cycles
FeaturesAntistatic
Mounting TypeThrough Hole
Operating Temperature [Max]85 °C
Operating Temperature [Min]-30 ░C
Switch FunctionOn-Mom
Termination StylePC Pin
TypeStandard
Voltage Rating - AC28 V
Voltage Rating - DC28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.83
10$ 6.15
100$ 5.41
1000$ 4.48
NewarkEach 1$ 13.49
5$ 12.58
10$ 11.57
25$ 10.56
50$ 9.55
100$ 8.44
250$ 7.58

Description

General part information

BB25AB Series

Pushbutton Switch DPDT Standard Through Hole
