104892-3
ActiveTE Connectivity AMP Connectors

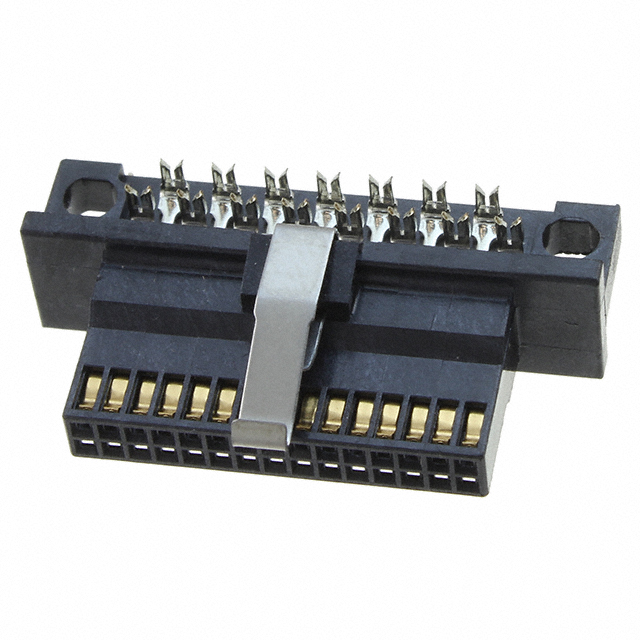

CONN RCPT 30POS IDC 28AWG GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
104892-3
ActiveTE Connectivity AMP Connectors
CONN RCPT 30POS IDC 28AWG GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 104892-3 | 104892 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Black | Black |
| Connector Type | Receptacle | Receptacle |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Contact Type | Female Socket | Female Socket |
| Fastening Type | Latch Lock | Latch Lock |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 30 | 30 - 100 |
| Number of Rows | 2 | 2 |
| Pitch [x] | 0.05 in | 0.05 in |
| Pitch [x] | 1.27 mm | 1.27 mm |
| Row Spacing | 1.27 mm | 1.27 mm |
| Row Spacing | 0.05 in | 0.05 in |
| Wire Gauge | 28 AWG | 28 AWG |
| Wire Type | Ribbon Cable | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.13 | |
| 18 | $ 12.86 | |||
| 36 | $ 12.51 | |||
| 54 | $ 12.04 | |||
104892 Series
CONN RCPT 50POS IDC 28AWG GOLD
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Wire Gauge | Row Spacing | Row Spacing | Contact Type | Mounting Type | Cable Termination | Number of Rows | Fastening Type | Color | Contact Finish | Connector Type | Pitch [x] | Pitch [x] | Wire Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 104892-5 | 50 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 104892-8 | 80 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 5-104892-7 | 70 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 5-104892-8 | 80 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 5-104892-4 | 40 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 6-104892-0 | 100 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
TE Connectivity AMP Connectors 104892-3 | 30 | 0.76 Ám | 30 Áin | 28 AWG | 1.27 mm | 0.05 in | Female Socket | Free Hanging (In-Line) | IDC | 2 | Latch Lock | Black | Gold | Receptacle | 0.05 in | 1.27 mm | Ribbon Cable |
Description
General part information
104892 Series
30 Position Rectangular Receptacle Connector IDC Gold 28 AWG
