A60-113-331P411
ActiveEDAC Inc.

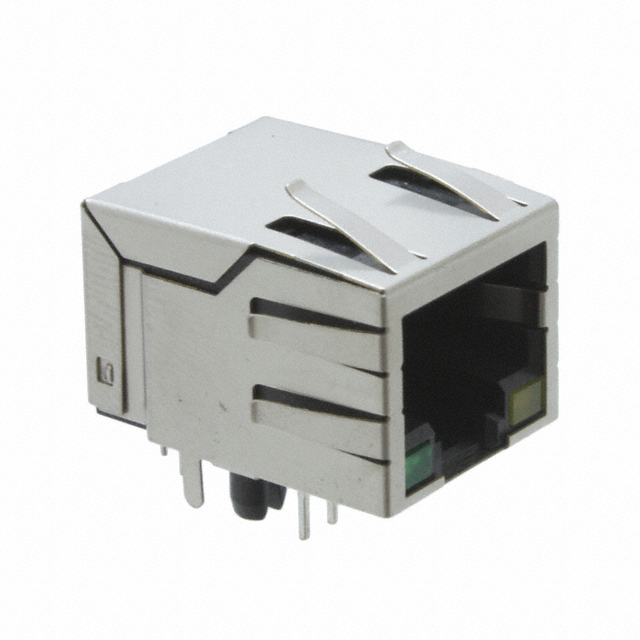

CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A60-113-331P411
ActiveEDAC Inc.
CONN JACK 1PORT 1000 BASE-T PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A60-113-331P411 | A60-113 Series |
|---|---|---|
| Applications | AutoMDIX, 10/100/1000 Base-T | AutoMDIX, 10/100/1000 Base-T |
| Connector Type | RJ45 | RJ45 |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 15 µin | 15 µin |
| Contact Finish Thickness | 0.38 µm | 0.38 µm |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Height Above Board | 0.535 in | 0.53 - 0.535 in |
| Height Above Board | 13.59 mm | 13.45 - 13.59 mm |
| Housing Material | Polybutylene Terephthalate (PBT), Glass Filled | Nylon, Polyamide (PA), Polyester, Glass Filled, Polybutylene Terephthalate (PBT), Glass Filled, Polyester |
| LED Color | Yellow, Green | Green - Green, Yellow, Green, Orange - Yellow, Does Not Contain LED |
| Mounting Type | Through Hole | Through Hole |
| Number of Cores per Jack | 8 | 8 |
| Number of Ports | 1 | 1 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Orientation | 90 ° | 90 ° |
| Shield Material | Copper Alloy | Copper Alloy |
| Shielding | Shielded, EMI Finger | Shielded, EMI Finger |
| Tab Direction | Down | Up, Down |
| Termination | Solder | Solder |
A60-113 Series
MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT
| Part | LED Color | Applications | Contact Material | Number of Ports | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Housing Material | Number of Cores per Jack | Height Above Board | Height Above Board | Tab Direction | Shield Material | Orientation | Mounting Type | Connector Type | Number of Rows | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. A60-113-235N414 | Green - Green, Yellow | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Nylon, Polyamide (PA), Polyester, Glass Filled | 8 | 0.532 in | 13.51 mm | Up | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
EDAC Inc. A60-113-331P432 | Green, Yellow | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Polybutylene Terephthalate (PBT), Glass Filled | 8 | 0.535 in | 13.59 mm | Down | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
EDAC Inc. A60-113-331P411 | Green, Yellow | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Polybutylene Terephthalate (PBT), Glass Filled | 8 | 0.535 in | 13.59 mm | Down | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
EDAC Inc. A60-113-231N432 | Green, Yellow | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Nylon, Polyamide (PA), Polyester, Glass Filled | 8 | 0.532 in | 13.51 mm | Up | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
EDAC Inc. A60-113-271N414 | Green, Orange - Yellow | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Nylon, Polyamide (PA), Polyester | 8 | 0.53 in | 13.45 mm | Up | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
EDAC Inc. A60-113-300P432 | Does Not Contain LED | 10/100/1000 Base-T, AutoMDIX | Phosphor Bronze | 1 | 70 °C | 0 °C | Shielded, EMI Finger | Polybutylene Terephthalate (PBT), Glass Filled | 8 | 0.535 in | 13.59 mm | Down | Copper Alloy | 90 ° | Through Hole | RJ45 | 1 | Gold | Solder | 15 µin | 0.38 µm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 8.59 | |
| 10 | $ 7.73 | |||
| 25 | $ 7.28 | |||
| 60 | $ 7.10 | |||
| 120 | $ 6.91 | |||
| 240 | $ 6.16 | |||
| 480 | $ 5.79 | |||
| 960 | $ 5.12 | |||
Description
General part information
A60-113 Series
1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
