A60-113-271N414

Active

EDAC Inc.

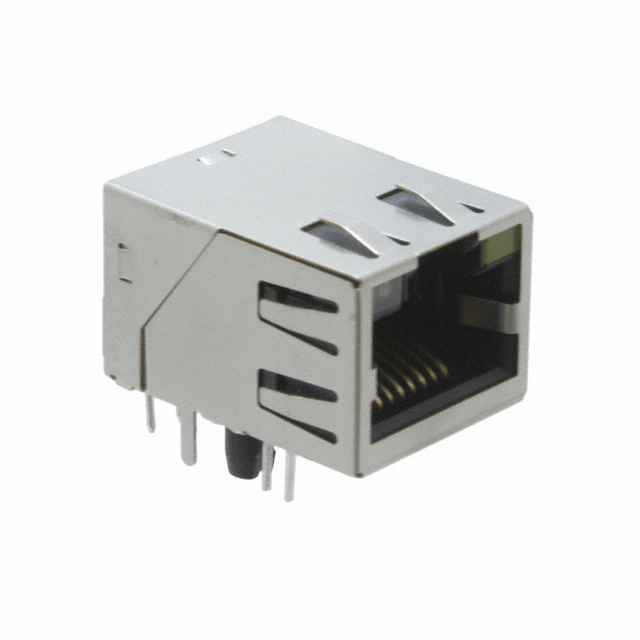

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A60-113-271N414

Active

EDAC Inc.

CONN JACK 1PORT 1000 BASE-T PCB

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	300	$ 8.15

Description

General part information

A60-113 Series

1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A60-113-271N414	A60-113 Series

Applications	AutoMDIX, 10/100/1000 Base-T	AutoMDIX, 10/100/1000 Base-T
Connector Type	RJ45	RJ45
Contact Finish	Gold	Gold
Contact Finish Thickness	15 µin	15 µin
Contact Finish Thickness	0.38 µm	0.38 µm
Contact Material	Phosphor Bronze	Phosphor Bronze
Height Above Board	13.45 mm	13.45 - 13.59 mm
Height Above Board	0.53 in	0.53 - 0.535 in
Housing Material	Polyester, Polyamide (PA), Nylon	Nylon, Polyamide (PA), Polyester, Glass Filled, Polybutylene Terephthalate (PBT), Glass Filled, Polyester
LED Color	Orange - Yellow, Green	Green - Green, Yellow, Green, Orange - Yellow, Does Not Contain LED
Mounting Type	Through Hole	Through Hole
Number of Cores per Jack	8	8
Number of Ports	1	1
Number of Rows	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Orientation	90 °	90 °
Shield Material	Copper Alloy	Copper Alloy
Shielding	Shielded, EMI Finger	Shielded, EMI Finger
Tab Direction	Up	Up, Down
Termination	Solder	Solder

A60-113 Series

MODULAR CONNECTOR, RJ45 JACK, 1 X 1 (PORT), 8P8C, THROUGH HOLE MOUNT

Part	LED Color	Applications	Contact Material	Number of Ports	Operating Temperature [Max]	Shielding	Housing Material	Number of Cores per Jack	Height Above Board	Height Above Board	Tab Direction	Shield Material	Orientation	Mounting Type	Connector Type	Number of Rows	Contact Finish	Termination	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. A60-113-235N414	Green - Green, Yellow	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Nylon, Polyamide (PA), Polyester, Glass Filled	8	0.532 in	13.51 mm	Up	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
EDAC Inc. A60-113-331P432	Green, Yellow	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Polybutylene Terephthalate (PBT), Glass Filled	8	0.535 in	13.59 mm	Down	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
EDAC Inc. A60-113-331P411	Green, Yellow	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Polybutylene Terephthalate (PBT), Glass Filled	8	0.535 in	13.59 mm	Down	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
EDAC Inc. A60-113-231N432	Green, Yellow	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Nylon, Polyamide (PA), Polyester, Glass Filled	8	0.532 in	13.51 mm	Up	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
EDAC Inc. A60-113-271N414	Green, Orange - Yellow	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Nylon, Polyamide (PA), Polyester	8	0.53 in	13.45 mm	Up	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
EDAC Inc. A60-113-300P432	Does Not Contain LED	10/100/1000 Base-T, AutoMDIX	Phosphor Bronze	1	70 °C	Shielded, EMI Finger	Polybutylene Terephthalate (PBT), Glass Filled	8	0.535 in	13.59 mm	Down	Copper Alloy	90 °	Through Hole	RJ45	1	Gold	Solder	15 µin	0.38 µm
