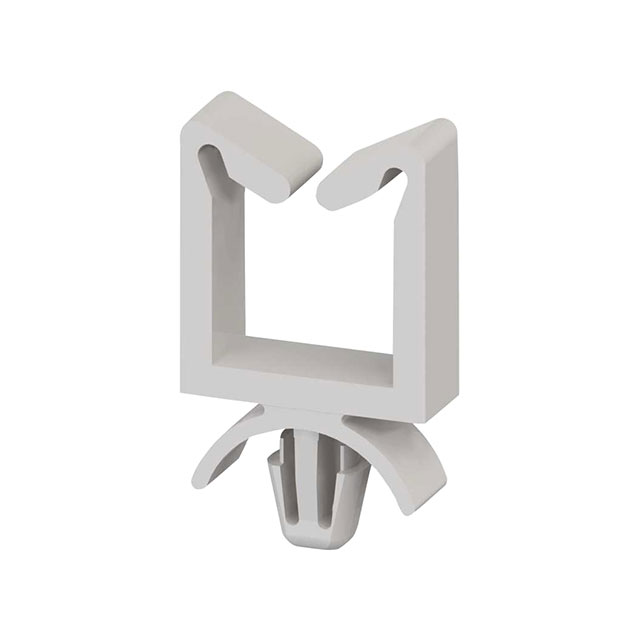

WS-A-2-1-01

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.4 MM, 5.6 MM

Search across all available documentation for this part.

Active

Essentra Access Solutions

FASTENER, SADDLE CLAMP, NYLON 6.6 (POLYAMIDE 6.6), NATURAL, 15.4 MM, 5.6 MM

Technical Specifications

Parameters and characteristics for this part

Specification	WS-A-2-1-01

Color	Natural
Height [z]	0.52 in
Height [z]	13.21 mm
Length [x]	15.5 mm
Length [x]	0.61 in
Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-2
Mounting Type	Arrowhead, Winged
Opening Size [x]	11.13 mm
Opening Size [x]	0.438 in
Opening Size [y]	0.19 in
Opening Size [y]	4.83 mm
Panel Hole Size	4.75 mm
Panel Hole Size	0.187 in
Panel Thickness	0.125 in
Panel Thickness	3.18 mm
Type	Clip, Wire Saddle
Width	5.56 mm
Width [x]	0.219 in

Part	Height [z]	Height [z]	Mounting Type	Features	Opening Size [y]	Opening Size [y]	Opening Size [x]	Opening Size [x]	Color	Width [x]	Width	Panel Thickness	Panel Thickness	Material	Length [x]	Length [x]	Type	Material Flammability Rating	Panel Hole Size	Panel Hole Size
Essentra Access Solutions WS-A-3-19	27.18 mm	1.07 in	Arrowhead Winged	Flame Retardant	18.8 mm	0.74 in	0.438 in	11.13 mm	Natural	0.219 in	5.56 mm	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	15.5 mm	0.61 in	Clip Wire Saddle	UL94 V-0	4.75 mm	0.187 in
Essentra Access Solutions WS-A-2-19	18.03 mm	0.71 in	Arrowhead Winged	Flame Retardant	9.65 mm	0.38 in	0.438 in	11.13 mm	Natural	0.219 in	5.56 mm	0.063 in	1.6 mm	Polyamide (PA66) Nylon 6/6	15.5 mm	0.61 in	Clip Wire Saddle	UL94 V-0	4.75 mm	0.187 in
Essentra Access Solutions WS-A-2-1-01	13.21 mm	0.52 in	Arrowhead Winged		4.83 mm	0.19 in	0.438 in	11.13 mm	Natural	0.219 in	5.56 mm	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6	15.5 mm	0.61 in	Clip Wire Saddle	UL94 V-2	4.75 mm	0.187 in
Essentra Access Solutions WS-A-2-1-19	13.21 mm	0.52 in	Arrowhead Winged	Flame Retardant	4.83 mm	0.19 in	0.438 in	11.13 mm	Natural	0.219 in	5.56 mm	0.125 in	3.18 mm	Polyamide (PA66) Nylon 6/6	15.5 mm	0.61 in	Clip Wire Saddle	UL94 V-0	4.75 mm	0.187 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Clip, Wire Saddle Natural Arrowhead, Winged 0.438" L x 0.190" H (11.13mm x 4.83mm)
