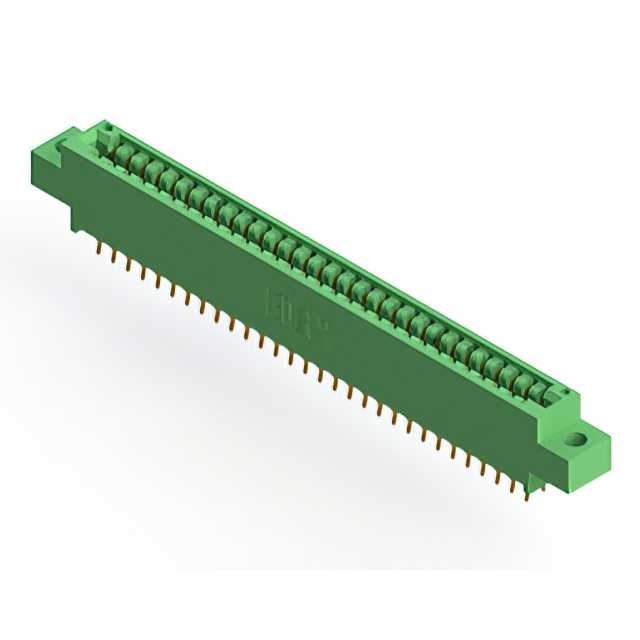

846-060-556-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
846-060-556-804
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 60POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 846-060-556-804 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Mount Opening, Unthreaded |
| Flange Feature [diameter] | 0.156 in |
| Flange Feature [diameter] | 3.96 mm |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 60 |
| Number of Positions/Bay/Row [custom] | 30 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
846-060 Series
...
| Part | Number of Positions/Bay/Row [custom] | Contact Material | Contact Finish | Material - Insulation | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Termination Rows | Mounting Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Positions | Flange Feature | Number of Rows | Pitch [x] | Pitch [x] | Gender | Termination | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Flange Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.125 in | 3.18 mm | Female | Solder | |||||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole Right Angle | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | Floating Bobbin Flush Mount | 2 | 0.125 in | 3.18 mm | Female | Solder | 0.116 in | 2.95 mm | |||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | 0.125 in | 3.18 mm | Female | Solder | ||||||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | 0.125 in | 3.18 mm | Female | Solder | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | Side Mount Opening Unthreaded | 2 | 0.125 in | 3.18 mm | Female | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Board Edge Straddle Mount | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | Top Mount Opening Unthreaded | 2 | 0.125 in | 3.18 mm | Female | Solder | 0.156 in | 3.96 mm | Card Extender | ||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | Side Mount Opening Unthreaded | 2 | 0.125 in | 3.18 mm | Female | Wire Wrap | 3.25 mm | 0.128 in | |||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | Side Mount Opening Unthreaded | 2 | 0.125 in | 3.18 mm | Female | Solder | 3.25 mm | 0.128 in | |||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Board Edge Straddle Mount | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 2 | 0.125 in | 3.18 mm | Female | Solder Eyelet(s) | Card Extender | |||||
EDAC Inc. | 30 | Copper Alloy | Gold | Diallyl Phthalate (DAP) | 125 °C | -40 °C | Non Specified - Dual Edge | Cantilever | 10 Áin | 0.25 Ám | Dual | 2 | Through Hole | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 60 | 4-40 Flush Mount Threaded Insert Top Opening | 2 | 0.125 in | 3.18 mm | Female | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
846-060 Series
60 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Green
