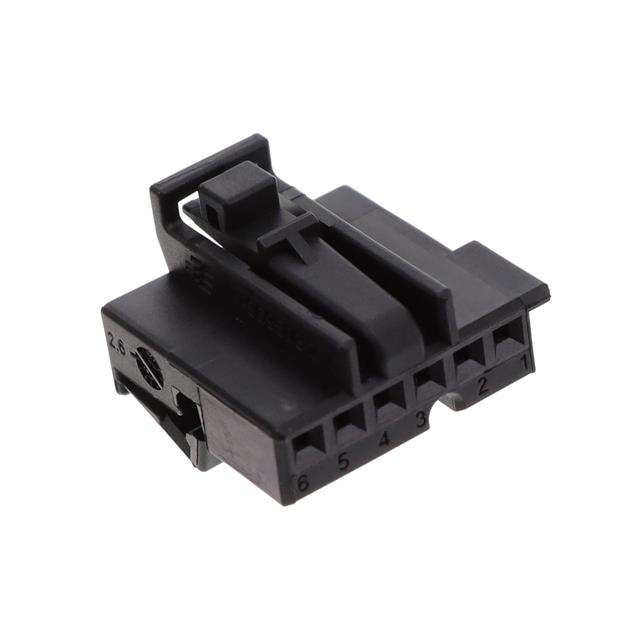

1-969508-2
ActiveTE Connectivity AMP Connectors
MQS BU-GEH 6P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1-969508-2
ActiveTE Connectivity AMP Connectors
MQS BU-GEH 6P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1-969508-2 |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.79 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.63 | |||
| 100 | $ 0.60 | |||
| 250 | $ 0.55 | |||
| 500 | $ 0.49 | |||
| 1000 | $ 0.44 | |||
| 2500 | $ 0.40 | |||
969508 Series
MQS BU-GEH 6P
| Part | Number of Rows | Pitch [x] | Pitch [x] | Connector Type | Insulation Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type | Number of Positions | Color | Contact Type | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1-969508-2 | 1 | 2.54 mm | 0.1 in | Receptacle | Polybutylene Terephthalate (PBT), Glass Filled | -40 °C | 120 °C | Crimp | Free Hanging (In-Line) | 6 | Black | Female Socket | Latch Lock |
Description
General part information
969508 Series
6 Rectangular Connectors - Housings Receptacle Black 0.100" (2.54mm)
