FM4-NDSP-PCB-1

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA QUAD

Search across all available documentation for this part.

Active

AMPHENOL RF

AUTOMATE TYPE A MINI-FAKRA QUAD

Technical Specifications

Parameters and characteristics for this part

Specification	FM4-NDSP-PCB-1

Body Finish	Tin
Body Material	Zinc Alloy
Center Contact Material	Copper Alloy
Center Contact Plating	Gold
Connector Style	Quadraxial, Miniature Coaxial, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Liquid Crystal Polymer (LCP)
Fastening Type	Latch Lock
Features	Code D
Frequency - Max [Max]	9 GHz
Housing Color	Claret, Violet
Impedance	50 Ohms
Mating Cycles	25
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

AUTOMATE TYPE A MINI-FAKRA QUAD

Part	Mounting Type	Mating Cycles	Frequency - Max [Max]	Center Contact Plating	Shield Termination	Impedance	Contact Termination	Body Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Fastening Type	Housing Color	Connector Style	Connector Type	Number of Ports	Center Contact Material	Dielectric Material
AMPHENOL RF FM4-NDSP-PCB-1	Through Hole	25	9 GHz	Gold	Solder	50 Ohms	Solder	Tin	Code D	-40 °C	105 ░C	Zinc Alloy	Latch Lock	Claret, Violet	Fakra, Miniature Coaxial, Quadraxial	Male Pin, Plug	1	Copper Alloy	Liquid Crystal Polymer (LCP)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1250	$ 5.48

General part information

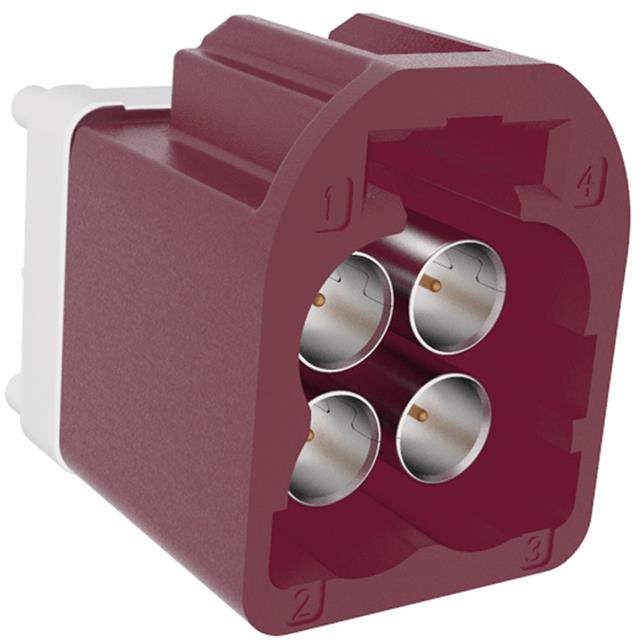

Miniature Coaxial, Fakra, Quadraxial Connector Plug, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
