PI2EQX862XUAEX
ActiveDiodes Inc
PCIE 1.0/2.0/SATA 3.0, 1-LANE, COMBO REDRIVER
Deep-Dive with AI
Search across all available documentation for this part.
PI2EQX862XUAEX
ActiveDiodes Inc
PCIE 1.0/2.0/SATA 3.0, 1-LANE, COMBO REDRIVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PI2EQX862XUAEX |
|---|---|
| Applications | PCIe 3.0, SATA 3.0 |
| Data Rate (Max) | 8 Gbps |
| Input | CML |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Output | CML |

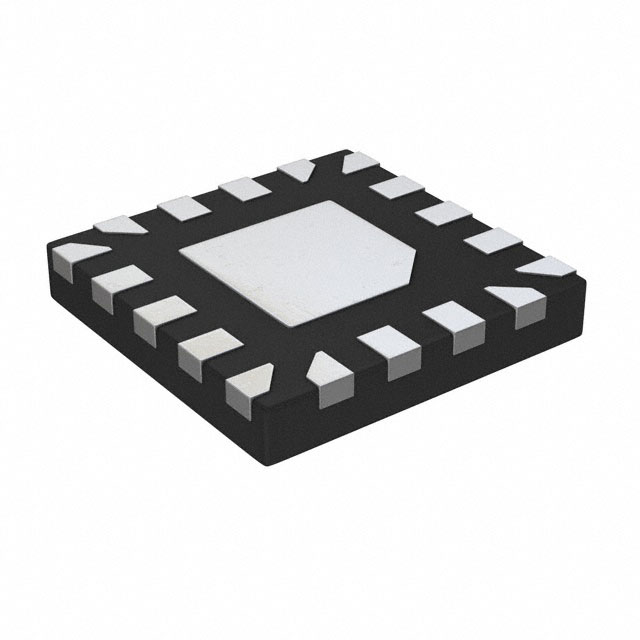

| Package / Case | 18-XFQFN Exposed Pad |
| Signal Conditioning | Input Equalization, Output De-Emphasis |
| Supplier Device Package | 18-X2QFN (2x2) |
| Type | ReDriver, Buffer |
| Voltage - Supply | 1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.53 | |
| 10 | $ 2.27 | |||
| 25 | $ 2.15 | |||
| 100 | $ 1.83 | |||
| 250 | $ 1.72 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.24 | |||
| Tape & Reel (TR) | 3500 | $ 1.06 | ||
Description
General part information
PI2EQX862 Series
PCIe 1.0/2.0/SATA 3.0, 1-Lane, Combo ReDriver
