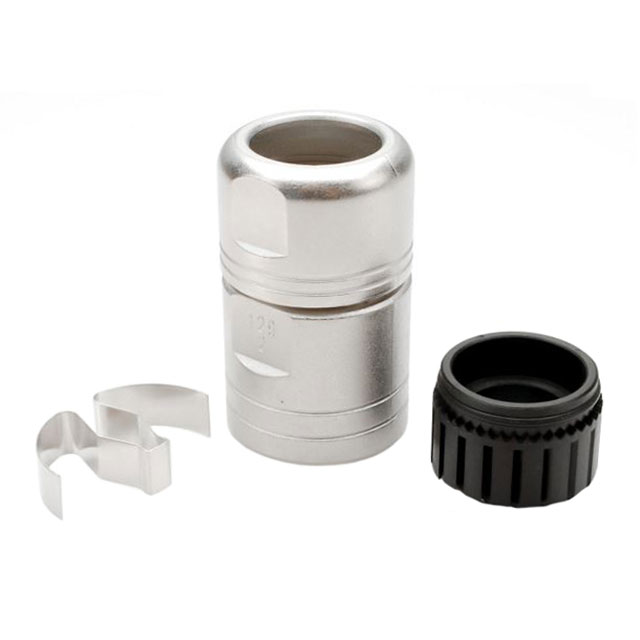

MB6CG-S2

Active

Amphenol Sine Systems Corp

CABLE GRIP 11-14.5MM ZINC

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

CABLE GRIP 11-14.5MM ZINC

Technical Specifications

Parameters and characteristics for this part

Specification	MB6CG-S2

Color	Gray
Includes	Gasket, Seal, Nut, EMI Shielding Ring
Ingress Protection	IP67 - Dust Tight, Waterproof
Material	Zinc, Nickel Plated
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-20 C
Outside Cable Diameter (Max) [Max] [diameter]	0.571 in
Outside Cable Diameter (Max) [Max] [diameter]	14.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.433 in
Outside Cable Diameter (Min) [Min] [diameter]	11 mm
Panel Hole Size	0.945 in
Panel Hole Size	24 mm
Type	Cable Grip

Part	Material	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection	Includes	Color	Panel Hole Size	Panel Hole Size	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]
Amphenol Sine Systems Corp MB6CG-S2	Zinc Nickel Plated	-20 C	130 °C	0.433 in	11 mm	IP67 - Dust Tight Waterproof	EMI Shielding Ring Gasket Nut Seal	Gray	0.945 in	24 mm	Cable Grip	0.571 in	14.5 mm
Amphenol Sine Systems Corp MB6CG-S3	Zinc Nickel Plated	-20 C	130 °C			IP67 - Dust Tight Waterproof	EMI Shielding Ring Gasket Nut Seal	Gray	0.945 in	24 mm	Cable Grip	0.669 in	16.99 mm	0.571 in	14.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Grip Zinc, Nickel Plated Gray
