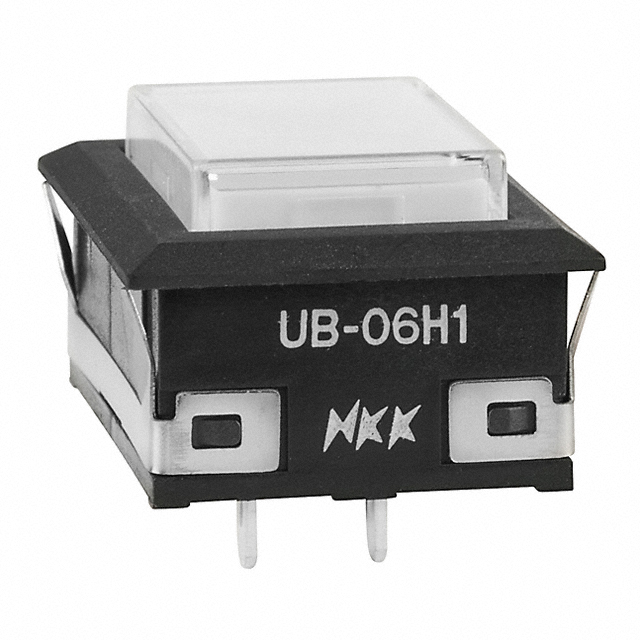

UB06KW015D-JB

Active

NKK Switches

INDICATOR RECT AMB ILLUM CLR CAP

Search across all available documentation for this part.

Active

NKK Switches

INDICATOR RECT AMB ILLUM CLR CAP

Technical Specifications

Parameters and characteristics for this part

Part	Lens Size [y]	Lens Size [x]	Lamp Color	Current	Voltage	Lens Style	Panel Cutout Shape	Lens Transparency	Type	Lens Color	Termination Style
NKK Switches UB06KW015C-CC	12 mm	17 mm	Red	30 mA	1.85 V	Rectangle with Flat Top	Rectangle	Diffused	LED	Red
NKK Switches UB06KW015C-JB	12 mm	17 mm	Red	30 mA	1.85 V	Rectangle with Flat Top	Rectangle	Diffused	LED	Red	Solder Lug
NKK Switches UB06KW015D-JB	12 mm	17 mm	Amber	30 mA	2 V	Rectangle with Flat Top	Rectangle	Diffused	LED	White
NKK Switches UB06KW015F	12 mm	17 mm	Green	25 mA	2.1 V	Rectangle with Flat Top	Rectangle		LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Amber Diffused 2V 30mA
