TMMS-115-01-L-Q-RA-FS

Active

Samtec Inc.

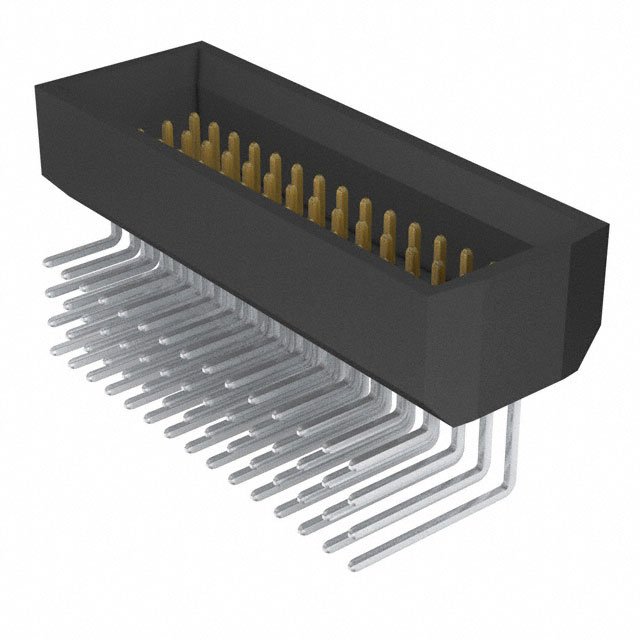

CONN HEADER R/A 60POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMMS-115-01-L-Q-RA-FS

Active

Samtec Inc.

CONN HEADER R/A 60POS 2MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMS-115-01-L-Q-RA-FS

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	0.13 in
Contact Length - Mating	3.3 mm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	12.07 mm
Insulation Height [z]	0.475 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Termination	Solder

TMMS-115 Series

Part	Contact Type	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height [z]	Operating Temperature [Min]	Operating Temperature [Max]	Pitch - Mating [x]	Pitch - Mating [x]	Contact Material	Contact Length - Mating	Contact Length - Mating	Connector Type	Termination	Shrouding	Number of Positions Loaded	Number of Positions	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Fastening Type	Contact Finish - Mating	Insulation Material	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Overall Contact Length	Overall Contact Length
Samtec Inc. TMMS-115-01-S-Q-RA-FS	Male Pin	UL94 V-0	0.079 in	2 mm	Square	30 Áin	0.76 Ám	12.07 mm	0.475 in	-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.09 "	2.29 mm	Tin	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole Right Angle
Samtec Inc. TMMS-115-01-G-Q-RA-FS	Male Pin	UL94 V-0	0.079 in	2 mm	Square	10 çin	0.25 çm	12.07 mm	0.475 in	-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.09 "	2.29 mm	Gold	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole Right Angle	10 çin	0.25 çm
Samtec Inc. TMMS-115-01-S-Q-FS	Male Pin	UL94 V-0	0.079 in	2 mm	Square	30 Áin	0.76 Ám	7.6 mm		-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.113 in	2.87 mm	Tin	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole			0.299 in	0.302 in	7.67 mm
Samtec Inc. TMMS-115-01-S-Q-RA	Male Pin	UL94 V-0	0.079 in	2 mm	Square	30 Áin	0.76 Ám	12.07 mm	0.475 in	-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.09 "	2.29 mm	Tin	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole Right Angle
Samtec Inc. TMMS-115-01-L-Q-RA-FS	Male Pin	UL94 V-0	0.079 in	2 mm	Square	10 çin	0.25 çm	12.07 mm	0.475 in	-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.09 "	2.29 mm	Tin	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole Right Angle
Samtec Inc. TMMS-115-01-G-Q-FS	Male Pin	UL94 V-0	0.079 in	2 mm	Square	10 çin	0.25 çm	7.6 mm		-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.113 in	2.87 mm	Gold	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole	10 çin	0.25 çm	0.299 in	0.302 in	7.67 mm
Samtec Inc. TMMS-115-01-F-Q	Male Pin	UL94 V-0	0.079 in	2 mm	Square	3 µin	0.076 µm	7.6 mm		-55 °C	125 °C	0.079 in	2 mm	Phosphor Bronze	0.13 in	3.3 mm	Header	Solder	Shrouded - 4 Wall	All	60	Black	0.113 in	2.87 mm	Tin	Push-Pull	Gold	Liquid Crystal Polymer (LCP)	Through Hole			0.299 in	0.302 in	7.67 mm
