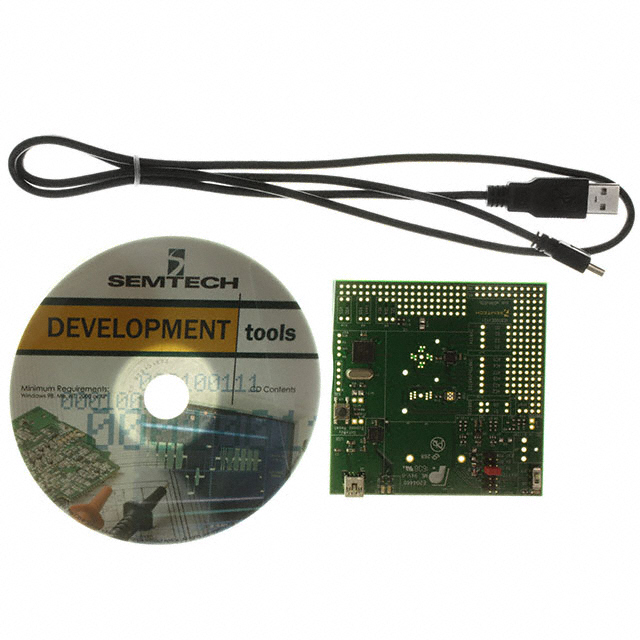

XE8000EV121

Obsolete

Semtech Corporation

BOARD EVAL FOR SX8723/24

Search across all available documentation for this part.

Obsolete

Semtech Corporation

BOARD EVAL FOR SX8723/24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SX8723, SX8724, SX8725 Sensor to ADC Interface, Programmable Interface Evaluation Board

Technical documentation and resources

Specification	XE8000EV121	XE800 Series

Board Type	-	Evaluation Platform
Contents	Board(s)	Board(s)
Core Processor	-	Coolrisc816®
Data Interface	-	I2C
Embedded	False	False
For Use With/Related Products	-	XE8000 Series
Function	Sensor to ADC Interface, Programmable	Sensor to ADC Interface, Programmable
Number of A/D Converters	-	1
Number of Bits	-	16
Primary Attributes	Signal Conditioning for Bridge-Type Sensors	Signal Conditioning for Bridge-Type Sensors
Supplied Contents	Board(s)	Board(s)
Type	Interface	MCU 8-Bit, Programmer, Interface
Utilized IC / Part	SX8725, SX8724, SX8723	SX8722, XE88LC05AMI028, SX8725, SX8724, SX8723

Part	Supplied Contents	Number of A/D Converters	Data Interface	Utilized IC / Part	Number of Bits	Board Type	Core Processor	Contents	Type	For Use With/Related Products	Primary Attributes	Function
Semtech Corporation XE8000EV120	Board(s)	1	I2C	SX8722	16
Semtech Corporation XE8000EV104				XE88LC05AMI028		Evaluation Platform	Coolrisc816®	Board(s)	MCU 8-Bit
Semtech Corporation XE8000MP								Board(s)	Programmer	XE8000 Series
Semtech Corporation XE8000EV121	Board(s)			SX8723, SX8724, SX8725				Board(s)	Interface		Signal Conditioning for Bridge-Type Sensors	Sensor to ADC Interface, Programmable
