59K214-302L5

Active

Rosenberger

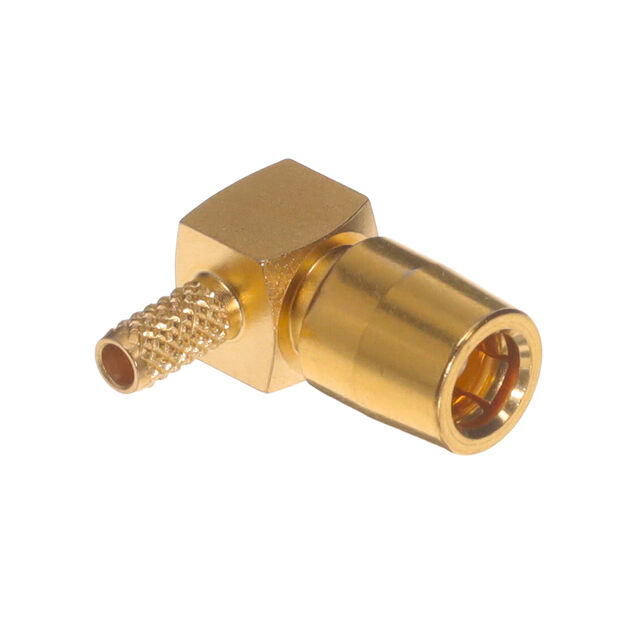

CONN SMB JACK R/A 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMB JACK R/A 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	59K214-302L5

Body Finish	Gold
Body Material	Brass
Cable Group	RG-174A, 316, 188A
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule, 1 End Cap
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	250 VDC

Part	Includes	Shield Termination	Impedance	Housing Color	Center Contact Plating	Fastening Type	Frequency - Max [Max]	Voltage Rating	Body Material	Contact Termination	Center Contact Material	Cable Group	Mating Cycles	Mounting Type	Connector Type	Number of Ports	Body Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Connector Style
Rosenberger 59K214-303L5	1 Connector 1 End Cap 1 Ferrule	Crimp	50 Ohms	Gold	Gold	Snap-On	4 GHz	250 VDC	Brass	Solder	Beryllium Copper	RG-316	500	Free Hanging (In-Line) Right Angle	Female Socket Jack	1	Gold	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	SMB
Rosenberger 59K214-302L5	1 Connector 1 End Cap 1 Ferrule	Crimp	50 Ohms	Gold	Gold	Snap-On	4 GHz	250 VDC	Brass	Solder	Beryllium Copper	188A 316 RG-174A	500	Free Hanging (In-Line) Right Angle	Female Socket Jack	1	Gold	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	SMB
Rosenberger 59K214-271L5	1 Connector 1 End Cap	Solder	50 Ohms	Gold	Gold	Snap-On	4 GHz	250 VDC	Brass	Solder	Beryllium Copper	RG-405 (.085" Semi Rigid)	500	Free Hanging (In-Line) Right Angle	Female Socket Jack	1	Gold	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	SMB

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMB Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line), Right Angle Solder
