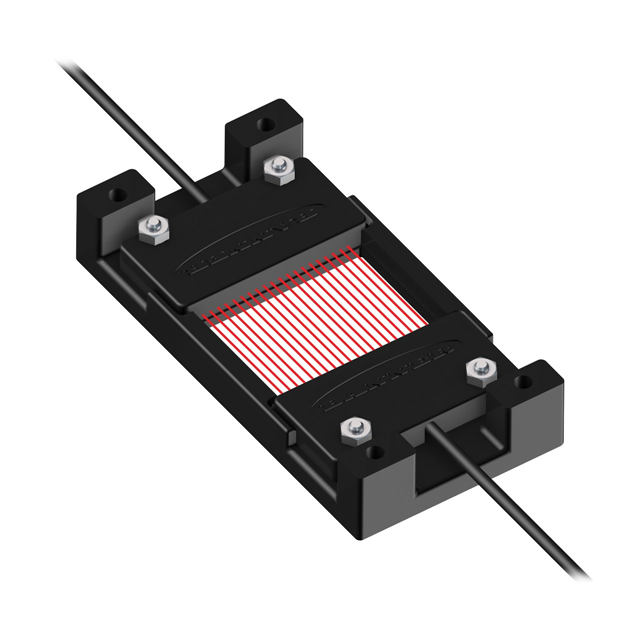

PFCVA-34X25-E

Active

BANNER ENGINEERING

PLASTIC FIBER, OPPOSED MODEC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PLASTIC FIBER, OPPOSED MODEC

Technical Specifications

Parameters and characteristics for this part

Specification	PFCVA-34X25-E

Cable Length	354.33 in
Cable Length	9 m
Connection Method	Cable
Ingress Protection	IP50, IEC, NEMA 1
Light Source	Red
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Output Configuration	NPN/PNP, Dark-ON/Light-ON, Selectable
Response Time	0.3 ms
Voltage - Supply [Max]	24 V
Voltage - Supply [Min]	12 V

Part	Cable Length	Cable Length	Light Source	Ingress Protection	Connection Method	Response Time	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Configuration
BANNER ENGINEERING PFCVA-34X25-E	354.33 in	9 m	Red	IP50 IEC NEMA 1	Cable	0.3 ms	55 °C	-20 C	12 V	24 V	Dark-ON/Light-ON NPN/PNP Selectable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 217.00
Newark	Each	1	$ 228.00

General part information

Optical Sensor NPN/PNP - Dark-ON/Light-ON - Selectable
