019036 Series

Part	Insulation Diameter	Material - Insulation	Length - Barrel	Termination	Contact Material	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Insulation	Color	Contact Finish	Diameter - Barrel	Length - Overall	Terminal Type
Molex 0190360018	0.14 in	Nylon PA Polyamide	0.426 in	Crimp	Copper	18 AWG	22 AWG	Non-Mating End Insulated	Red	Tin	0.156 in	0.901 in	Male Pin (Plug)
Molex 0190360002	0.14 in	Nylon PA Polyamide	0.49 in	Crimp	Copper	18 AWG	22 AWG	Non-Mating End Insulated	Red	Tin	0.18 in	0.98 in	Male Pin (Plug)
Molex 0190360001	0.14 in	Nylon PA Polyamide	0.49 in	Crimp	Copper	18 AWG	22 AWG	Non-Mating End Insulated	Red	Tin	0.18 in	0.98 in	Male Pin (Plug)
Molex 0190360006	0.17 in	Nylon PA Polyamide	0.49 in	Crimp	Copper	14 AWG	16 AWG	Non-Mating End Insulated	Blue	Tin	0.18 in	0.98 in	Male Pin (Plug)
Molex 0190360003	0.14 in	Nylon PA Polyamide	0.44 in	Crimp	Copper	18 AWG	22 AWG	Non-Mating End Insulated	Red	Tin	0.156 in	0.93 in	Male Pin (Plug)
Molex 0190360008	0.17 in	Nylon PA Polyamide	0.44 in	Crimp	Copper	14 AWG	16 AWG	Non-Mating End Insulated	Blue	Tin	0.156 in	0.93 in	Male Pin (Plug)

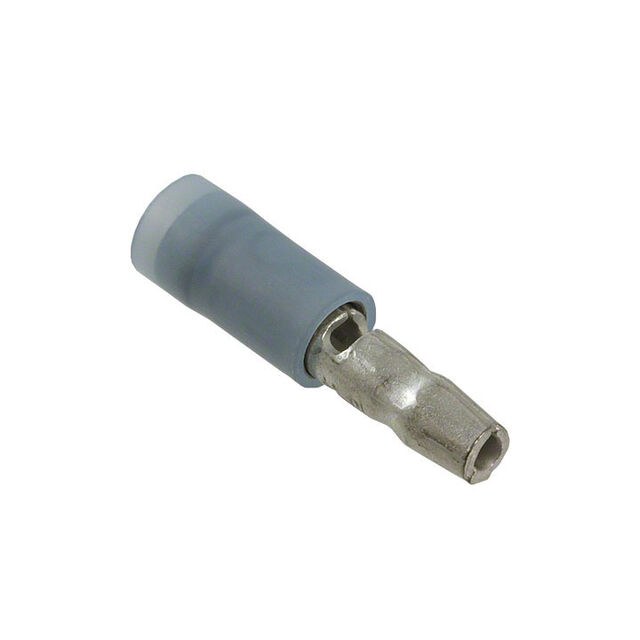

Molex 0190360009	0.17 in	Nylon PA Polyamide	0.44 in	Crimp	Copper	14 AWG	16 AWG	Non-Mating End Insulated	Blue	Tin	0.156 in	0.93 in	Male Pin (Plug)
Molex 0190360005	0.14 in	Nylon PA Polyamide	0.44 in	Crimp	Copper	18 AWG	22 AWG	Non-Mating End Insulated	Red	Tin	0.156 in	0.93 in	Male Pin (Plug)
Molex 0190360007	0.17 in	Nylon PA Polyamide	0.49 in	Crimp	Copper	14 AWG	16 AWG	Non-Mating End Insulated	Blue	Tin	0.18 in	0.98 in	Male Pin (Plug)
