16982-6PG-522

Active

Conxall/Switchcraft

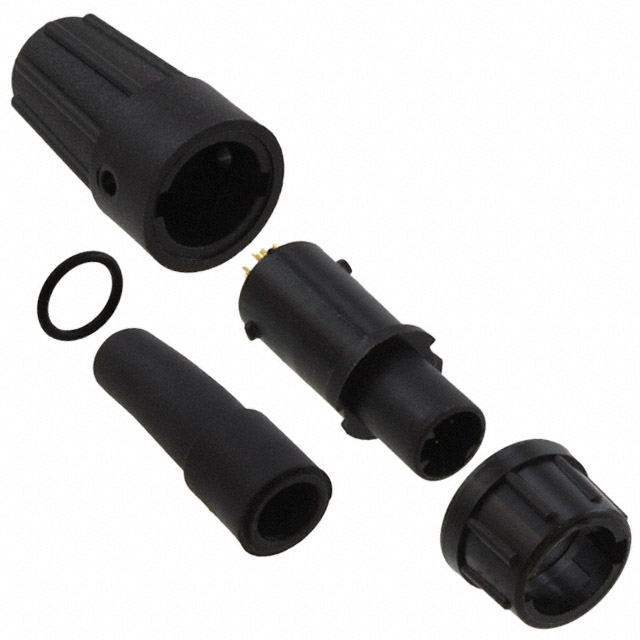

CONN PLUG MALE 6P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	16982-6PG-522

Applications	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm
Cable Opening [Max] [diameter]	0.23 in
Cable Opening [Min] [diameter]	0.22 in
Cable Opening [Min] [diameter]	5.59 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	4 A
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Plastic
Shielding	Unshielded
Voltage Rating	600 VAC

CONN PLUG MALE 6P GOLD SLDR CUP

Part	Color	Fastening Type	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Mounting Type	Current Rating (Amps)	Contact Material	Primary Material	Ingress Protection	Voltage Rating	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Features	Backshell Material, Plating	Connector Type	Applications	Number of Positions	Material Flammability Rating	Orientation
Conxall/Switchcraft 16982-6PG-522	Black	Bayonet Lock	5.84 mm	0.22 in	5.59 mm	0.23 in	Free Hanging (In-Line)	4 A	Copper Alloy	Plastic	IP67 - Dust Tight, Waterproof	600 VAC	Unshielded	85 °C	-40 °C	Gold	Backshell	Thermoplastic	Male Pins, Plug	Data, Industrial, Instrumentation, Medical	6	UL94 HB	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Male Pins Solder Cup
