SQW-104-01-L-D

Unknown

Samtec Inc.

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSQW Series Datasheet Datasheet

SQW-104-01-L-D

Unknown

Samtec Inc.

CONN RCPT 8POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsSQW Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQW-104-01-L-D

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	3.8 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQW-104 Series

Part	Material Flammability Rating	Style	Termination	Number of Positions	Contact Finish - Mating	Connector Type	Insulation Material	Number of Rows	Contact Finish - Post	Mounting Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Shape	Contact Material	Number of Positions Loaded	Pitch - Mating [x]	Pitch - Mating [x]	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Features	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Insulation Height	Insulation Height	Number of Positions
Samtec Inc. SQW-104-01-S-D-VS	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	30 Áin	0.76 Ám	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm
Samtec Inc. SQW-104-01-S-D-VS-P	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	30 Áin	0.76 Ám	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm	Pick and Place
Samtec Inc. SQW-104-01-L-D-VS-001-K-TR	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	10 çin	0.25 çm	Square	Phosphor Bronze		0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm	Pick and Place	7
Samtec Inc. SQW-104-01-S-D	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Through Hole	3.8 A			Black	30 Áin	0.76 Ám	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm			0.09 "	2.29 mm	6.35 mm	0.25 in
Samtec Inc. SQW-104-01-F-Q	UL94 V-0	Board to Board Cable	Solder		Gold	Receptacle	Liquid Crystal Polymer (LCP)		Tin	Through Hole	3.8 A			Black	3 µin	0.076 µm	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm			0.09 "	2.29 mm	6.35 mm	0.25 in	16
Samtec Inc. SQW-104-01-F-D-VS-K-TR	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	3 µin	0.076 µm	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm	Pick and Place
Samtec Inc. SQW-104-01-L-D-VS-001	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	10 çin	0.25 çm	Square	Phosphor Bronze		0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm		7
Samtec Inc. SQW-104-01-LM-D-VS-001-K-TR	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	10 çin	0.25 çm	Square	Phosphor Bronze		0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm	Pick and Place	7
Samtec Inc. SQW-104-01-F-D-VS-008	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Surface Mount	3.8 A	0.3 in	7.62 mm	Black	3 µin	0.076 µm	Square	Phosphor Bronze		0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm		7
Samtec Inc. SQW-104-01-L-D	UL94 V-0	Board to Board Cable	Solder	8	Gold	Receptacle	Liquid Crystal Polymer (LCP)	2	Tin	Through Hole	3.8 A			Black	10 çin	0.25 çm	Square	Phosphor Bronze	All	0.079 in	2 mm	Push-Pull	-55 °C	125 °C	Forked	0.079 in	2 mm			0.09 "	2.29 mm	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SQW-104 Series

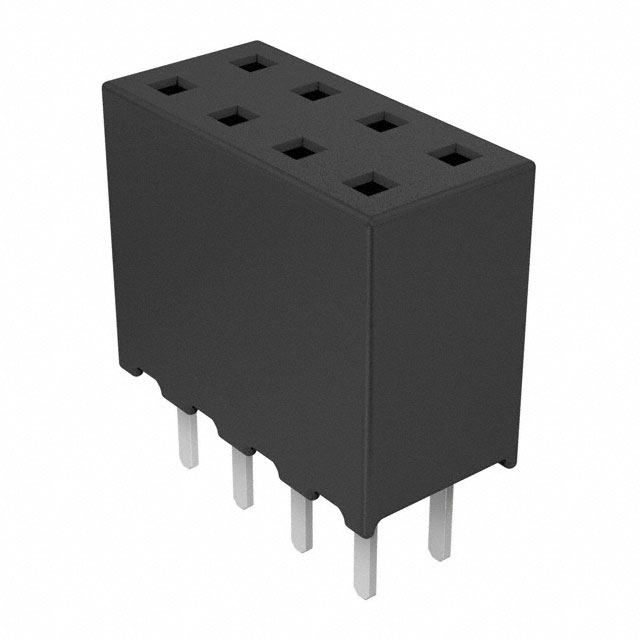

8 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold

Documents

Technical documentation and resources

SQW Series Datasheet

Datasheet
