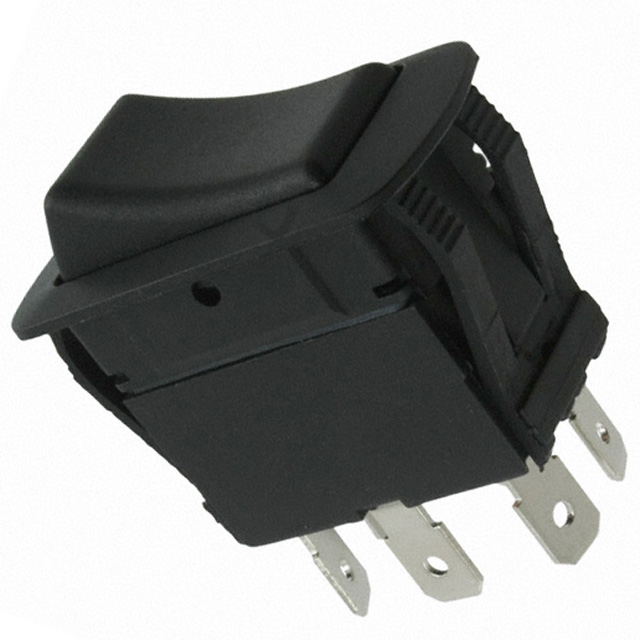

GRB260B601BBNN

Active

CW Industries

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

CW Industries

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	GRB260B601BBNN

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	ENEC, cULus
Circuit	DPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A, 20 A
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

Part	Switch Function	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Ingress Protection	Actuator Type	Current Rating (Amps)	Actuator Marking	Circuit	Approval Agency	Mechanical Life	Voltage Rating - AC
CW Industries GRB260B601BBNN	On-On	21.2 mm	36.6 mm	Black	Quick Connect - 0.250" (6.3mm)	14 V	85 °C	-20 C	Panel Mount Snap-In	IP56 - Dust Protected Water Resistant	Concave (Curved)	20 A 21 A	No Marking	DPDT	cULus ENEC	100000 Cycles	125 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Rocker Switch DPDT 20A (AC), 21A (DC) 125 V Panel Mount, Snap-In
