SDS101-PRW2-M09-SN00-1
ObsoleteSullins Connector Solutions
CONN D-SUB PLUG 9POS VERT SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SDS101-PRW2-M09-SN00-1 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Features | Grounding Indents |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Shell Size, Connector Layout [custom] | DE, E |
| Shell Size, Connector Layout [custom] | 1 |
| Termination | Solder |
| Voltage Rating | 250 VDC |
SDS101 Series
| Part | Voltage Rating | Material Flammability Rating | Number of Rows | Termination | Contact Form | Contact Type | Flange Feature | Connector Type | Color | Features | Contact Material | Mounting Type | Dielectric Material | Current Rating (Amps) | Contact Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Connector Style | Contact Finish Thickness | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | 4-40 Board Side | Male Pins Plug | White | Board Lock Grounding Indents | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | B DB | 3 | 105 ░C | -55 °C | D-Sub | Flash | |||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 105 ░C | -55 °C | D-Sub | Flash | 15 | 2 | ||||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | Black | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 105 ░C | -55 °C | D-Sub | Flash | 37 | 4 (DC C) | ||||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Receptacle Female Sockets | White | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | B DB | 3 | 105 ░C | -55 °C | D-Sub | Flash | ||||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 3 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Male Pins Plug | Black | Grounding Indents | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 105 ░C | -55 °C | D-Sub | Flash | 50 | 5 | |||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Female Screwlock (4-40) Mating Side | Receptacle Female Sockets | White | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 105 ░C | -55 °C | D-Sub | 37 | 4 (DC C) | 15 µin | 0.38 µm | |||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Male Pins Plug | Black | Grounding Indents | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | 105 ░C | -55 °C | D-Sub | Flash | 15 | 2 | |||||
Sullins Connector Solutions | 250 VDC | UL94 V-0 | 2 | Solder | Stamped | Signal | Housing/Shell (Unthreaded) | Male Pins Plug | Black | Grounding Indents | Brass | Through Hole | Polybutylene Terephthalate (PBT) Glass Filled | 3 A | Gold | DE E | 1 | 105 ░C | -55 °C | D-Sub | Flash | 9 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SDS101 Series

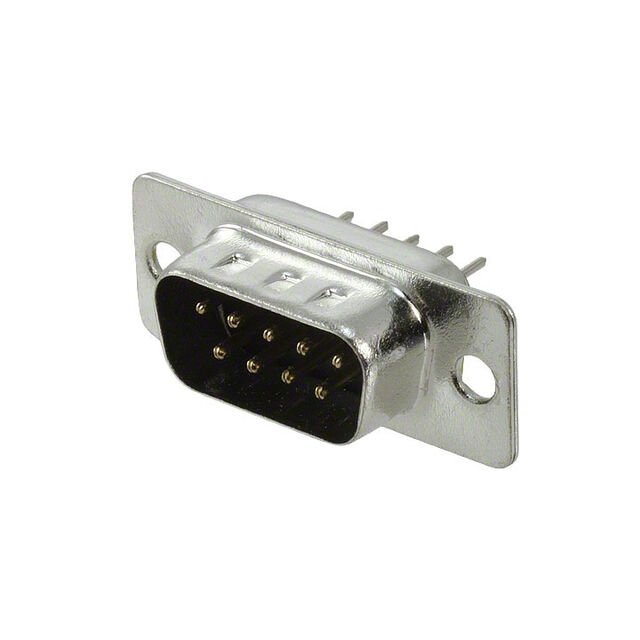

9 Position D-Sub Plug, Male Pins Connector
