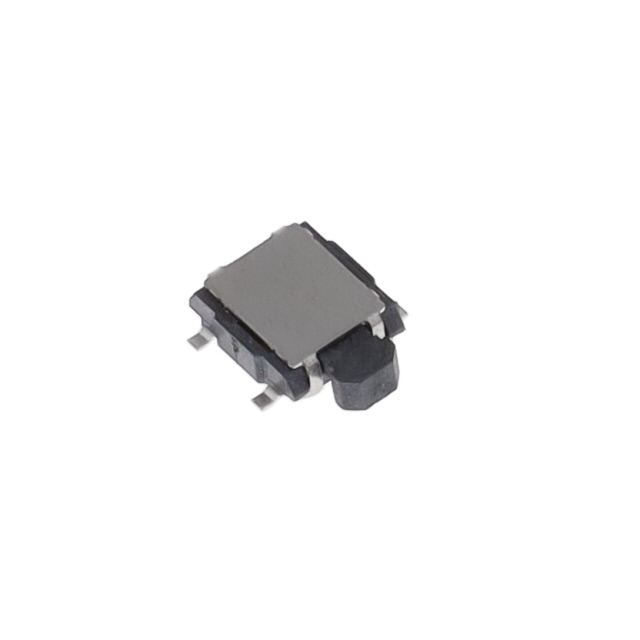

TL3901AGQF180
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
TL3901AGQF180
ActiveE-Switch
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TL3901AGQF180 |
|---|---|
| Actuator Orientation | Side Actuated |
| Actuator Type | Rectangular Button |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Features | Board Guide |
| Illumination | Non-Illuminated |
| Mounting Type | Surface Mount, Right Angle |
| Operating Force | 180 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6 mm |
| Outline [y] | 5.4 mm |
| Switch Function | Off-Mom |
| Switch Travel [custom] | 0.3 mm |
| Termination Style | Gull Wing |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.04 | |
| 10 | $ 1.00 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.63 | |||
| Digi-Reel® | 1 | $ 1.04 | ||
| 10 | $ 1.00 | |||
| 25 | $ 0.93 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.63 | |||
| Tape & Reel (TR) | 2000 | $ 0.63 | ||
| 4000 | $ 0.58 | |||
| 6000 | $ 0.54 | |||
| 10000 | $ 0.50 | |||
Description
General part information
TL3901 Series
Tactile Switch SPST-NO Side Actuated Surface Mount, Right Angle
Documents
Technical documentation and resources
No documents available
