IL-Z-2S-S125C3
ObsoleteJAE Electronics

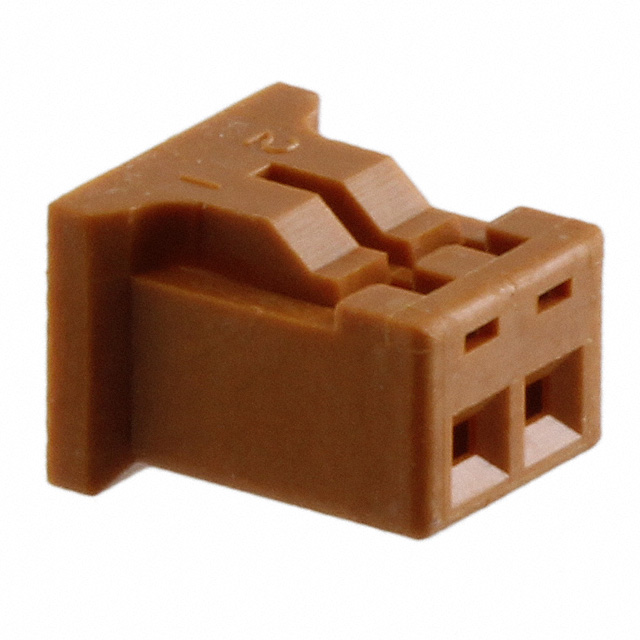

CONN RCPT HSG 2POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
IL-Z-2S-S125C3
ObsoleteJAE Electronics
CONN RCPT HSG 2POS 1.25MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | IL-Z-2S-S125C3 |
|---|---|
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Friction Lock |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.049 in |
| Pitch [x] | 1.25 mm |
IL-Z-2 Series
| Part | Number of Rows | Contact Finish - Post | Current Rating (Amps) | Number of Positions | Fastening Type | Material Flammability Rating | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Contact Type | Shrouding | Voltage Rating | Contact Length - Mating | Contact Length - Mating | Features | Mounting Type | Style | Insulation Material | Contact Shape | Contact Material | Insulation Color | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Connector Type | Contact Termination | Pitch [x] | Pitch [x] | Note | Mated Stacking Heights | Overall Contact Length | Overall Contact Length | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 1 | Tin | 1 A | 2 | Push-Pull | UL94 V-0 | Solder | -40 °C | 70 °C | Male Pin | Shrouded - 4 Wall | 200 V | 2.75 mm | 0.108 in | Solder Retention | Surface Mount Right Angle | Board to Cable/Wire | Polyphenylene Sulfide (PPS) | Square | Brass | Beige | 3.46 mm | 0.136 in | 1.25 mm | 0.049 in | All | Header | ||||||||||
JAE Electronics | 1 | Tin | 1 A | 2 | Friction Lock | UL94 V-0 | Solder | -40 °C | 70 °C | Male Pin | Shrouded - 4 Wall | 200 V | 2.75 mm | 0.108 in | Solder Retention | Surface Mount Right Angle | Board to Cable/Wire | Polyphenylene Sulfide (PPS) | Square | Brass | Beige | 3.46 mm | 0.136 in | 1.25 mm | 0.049 in | All | Header | ||||||||||
JAE Electronics | 1 | 2 | Friction Lock | -40 °C | 70 °C | Female Socket | Free Hanging (In-Line) | Polyamide (PA66) Nylon 6/6 Glass Filled | Receptacle | Crimp | 0.049 in | 1.25 mm | Contacts Not Included | ||||||||||||||||||||||||
JAE Electronics | 1 | Tin | 1 A | 2 | Push-Pull | UL94 V-0 | Solder | -40 °C | 70 °C | Male Pin | Shrouded - 4 Wall | 200 V | 2.75 mm | 0.108 in | Through Hole | Board to Cable/Wire | Polyamide (PA66) Nylon 6/6 | Square | Brass | Brown | 4.25 mm | 0.167 in | 1.25 mm | 0.049 in | All | Header | 5.2 mm | 0.209 " | 5.3 mm | 1.7 mm | 0.067 in | ||||||
JAE Electronics | 1 | 1 A | 2 | Friction Lock | UL94 V-0 | Solder | -40 °C | 70 °C | Male Pin | Shrouded - 4 Wall | 200 V | 2.75 mm | 0.108 in | Solder Retention | Surface Mount Right Angle | Board to Cable/Wire | Polyphenylene Sulfide (PPS) | Square | Brass | Beige | 3.46 mm | 0.136 in | 1.25 mm | 0.049 in | All | Header | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IL-Z-2 Series
2 Rectangular Connectors - Housings Receptacle 0.049" (1.25mm)
