BTS5200ENADAUGHBRDTOBO1

Active

Infineon Technologies

DAUGHTER BOARD, HIGH SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

BTS5200ENADAUGHBRDTOBO1

Active

Infineon Technologies

DAUGHTER BOARD, HIGH SIDE POWER SWITCH ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BTS5200ENADAUGHBRDTOBO1

Contents	Board(s)
Function	Switch
Type	Power Management
Utilized IC / Part	BTS5200-1ENA

BTS5200 Series

Part	Output Configuration	Input Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Load [Min]	Voltage - Load [Max]	Current - Output (Max) [Max]	Interface	Output Type	Fault Protection	Ratio - Input:Output [custom]	Package / Case	Package / Case	Package / Case	Number of Outputs	Rds On (Typ)	Supplier Device Package	Switch Type	Mounting Type	Voltage - Supply (Vcc/Vdd)	Function	Type	Utilized IC / Part	Contents
Infineon Technologies BTS52001ENAXUMA1	High Side	Non-Inverting	150 °C	-40 °C	5 V	28 V	1.5 A	On/Off	N-Channel	Current Limiting (Fixed) Open Load Detect Over Temperature Over Voltage	1:1	0.154 in	8-SOIC	3.9 mm	1	200 mOhm	PG-TDSO-8-31	General Purpose	Surface Mount
Infineon Technologies BTS5200ENADAUGHBRDTOBO1																					Switch	Power Management	BTS5200-1ENA	Board(s)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 48.30
Newark	Each	1	$ 49.88

Description

General part information

BTS5200 Series

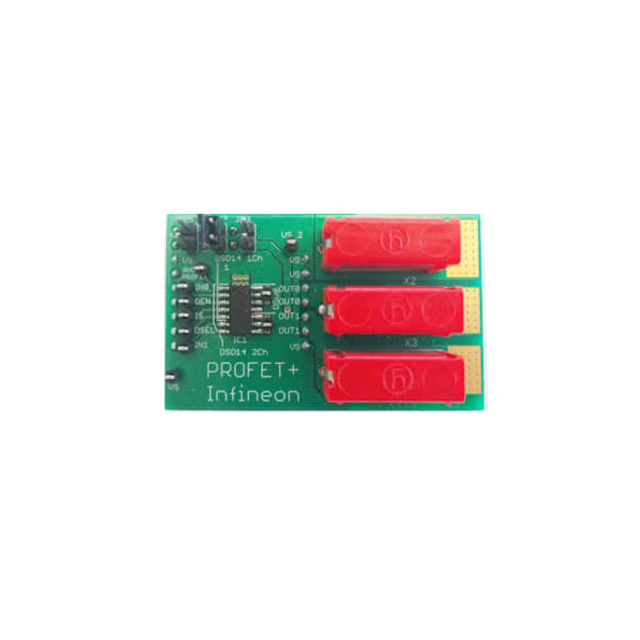

This daughterboard comes with 1 one channel high-side switch of BTS5200-1ENA and is compatible with thePROFET™+ motherboard. The purpose of this board is to provide a quick pick and place solution for costumers' lab evaluations. The motherboard in combination with the daugtherboard is capable to drive typical automotive loads.
