C4088A.18.10

Active

Prysmian Group

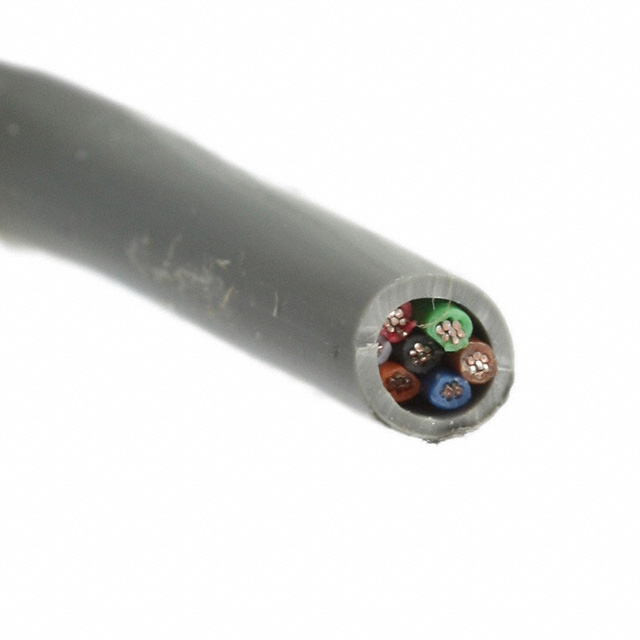

CABLE 7COND 22AWG GRAY 500'

Search across all available documentation for this part.

Active

Prysmian Group

CABLE 7COND 22AWG GRAY 500'

Technical Specifications

Parameters and characteristics for this part

Specification	C4088A.18.10

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	5.54 mm
Jacket (Insulation) Diameter [diameter]	0.218 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	7
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

Part	Jacket (Insulation) Material	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Material	Number of Conductors	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Voltage	Usage	Length	Length	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]
Prysmian Group C4088A.41.10	Poly-Vinyl Chloride (PVC)	Gray	7	30 AWG	Copper Tinned	7	22 AWG	5.54 mm	0.218 in	Multi-Conductor	300 V	Communication Control	1000 ft	304.8 m	Poly-Vinyl Chloride (PVC)	-20 C	80 C
Prysmian Group C4088A.18.10	Poly-Vinyl Chloride (PVC)	Gray	7	30 AWG	Copper Tinned	7	22 AWG	5.54 mm	0.218 in	Multi-Conductor	300 V	Communication Control			Poly-Vinyl Chloride (PVC)	-20 C	80 C	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Conductor Multi-Conductor Cable Gray 22 AWG 500.0' (152.4m)
