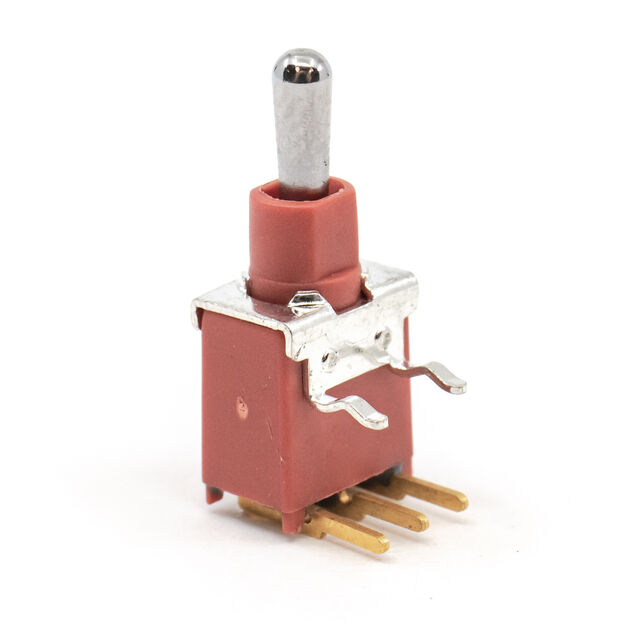

200AWMSP5T2A1M61RE

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TOGGLE SPDT 0.4VA 20V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	216	$ 3.50

General part information

Toggle Switch SPDT Through Hole, Right Angle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	200AWMSP5T2A1M61RE	200AWMSP5 Series

Actuator Length [x]	6.1 mm	6.1 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	0.4 VA	0.4 - 3 VA
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-Off-Mom	On-Off-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	20 V	20 - 120 V
Voltage Rating - DC	20 V	20 - 28 V

SWITCH TOGGLE SPDT 0.4VA 20V

Part	Electrical Life	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Mounting Type	Features	Termination Style	Actuator Type	Actuator Material	Current Rating (Amps)	Voltage Rating - AC	Bushing Thread	Circuit	Voltage Rating - DC	Actuator Length [x]
E-Switch 200AWMSP5T1A1VS2RE	50000 Cycles	Non-Illuminated	-30 ░C	85 °C	On-Off-Mom	IP67 - Dust Tight, Waterproof	Through Hole	Epoxy Sealed Terminals	PC Pin	Standard Round	Brass, Chrome Plated	0.4 VA	20 V	Unthreaded	SPDT	20 V	10.16 mm
E-Switch 200AWMSP5T2A1M2QE1000GF	50000 Cycles	Non-Illuminated	-30 ░C	85 °C	On-Off-Mom	IP67 - Dust Tight, Waterproof	Through Hole	Epoxy Sealed Terminals	PC Pin	Standard Round	Brass, Chrome Plated	3 A	120 V	Unthreaded	SPDT	28 V	6.1 mm
E-Switch 200AWMSP5T2A1M61RE	50000 Cycles	Non-Illuminated	-30 ░C	85 °C	On-Off-Mom	IP67 - Dust Tight, Waterproof	Through Hole, Right Angle	Epoxy Sealed Terminals	PC Pin	Standard Round	Brass, Chrome Plated	0.4 VA	20 V	Unthreaded	SPDT	20 V	6.1 mm
E-Switch 200AWMSP5T2A1M6RE	50000 Cycles	Non-Illuminated	-30 ░C	85 °C	On-Off-Mom	IP67 - Dust Tight, Waterproof	Through Hole, Right Angle	Epoxy Sealed Terminals	PC Pin	Standard Round	Brass, Chrome Plated	0.4 VA	20 V	Unthreaded	SPDT	20 V	6.1 mm
E-Switch 200AWMSP5T2A1M7RE	50000 Cycles	Non-Illuminated	-30 ░C	85 °C	On-Off-Mom	IP67 - Dust Tight, Waterproof	Right Angle, Through Hole, Vertical	Epoxy Sealed Terminals	PC Pin	Standard Round	Brass, Chrome Plated	0.4 VA	20 V	Unthreaded	SPDT	20 V	6.1 mm
