ActiveEDAC Inc.

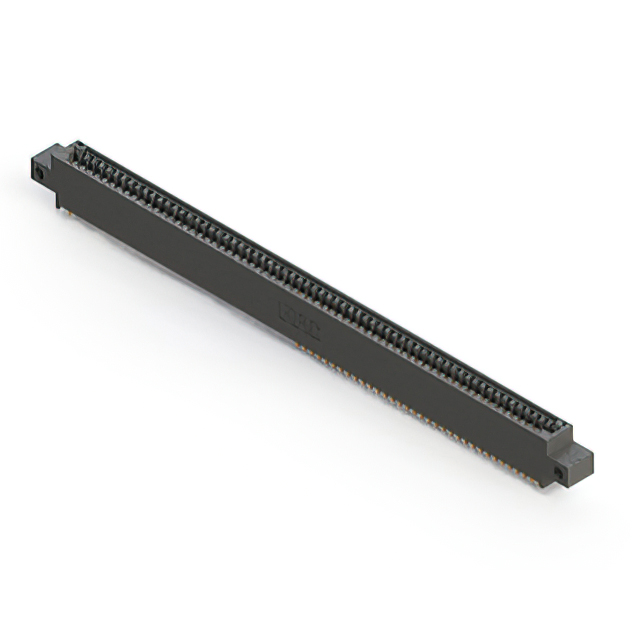

.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-065-558-612
ActiveEDAC Inc.
.100" (2.54MM) PITCH CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-065-558-612 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Side Mount Opening, Unthreaded |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 65 |
| Number of Positions/Bay/Row [custom] | 65 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
395-065 Series
...
| Part | Termination Rows | Material - Insulation | Termination | Pitch [x] | Pitch [x] | Contact Finish | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Rows | Card Type | Features | Mounting Type | Number of Positions/Bay/Row [custom] | Gender | Number of Positions | Contact Type | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Card Guides | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |
EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole Right Angle | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |
EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Card Guides | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 3.25 mm | 0.128 in | ||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | M3 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||
EDAC Inc. | 1 | Polyester Thermoplastic | Solder | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in | |
EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | 2.54 mm | 0.1 in | Gold | Copper Alloy | 10 Áin | 0.25 Ám | Single | 1 | Non Specified - Single Edge | Through Hole | 65 | Female | 65 | Cantilever | Black | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | 3.25 mm | 0.128 in |
