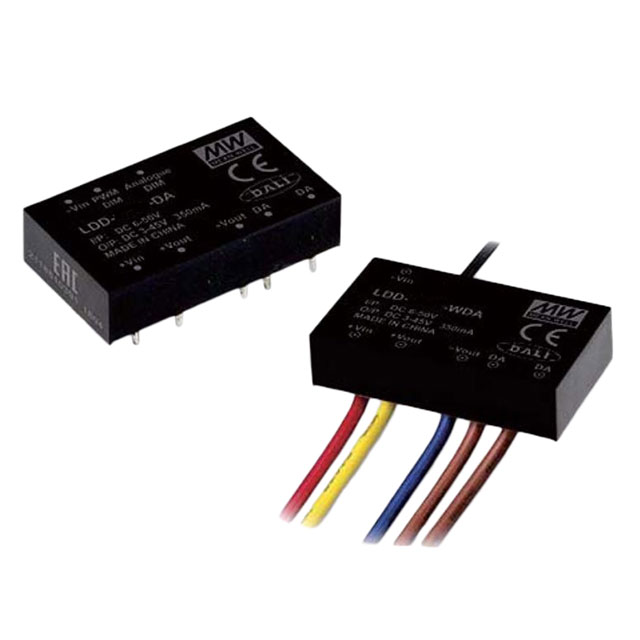

LDD-350H-WDA

Active

MEAN WELL USA Inc.

LED DRIVER CC BUCK 3-45V 350MA

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

LED DRIVER CC BUCK 3-45V 350MA

Technical Specifications

Parameters and characteristics for this part

Part	Features	Approval Agency	Current - Output (Max) [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Voltage - Input (Min) [Min]	Dimming	Efficiency	Mounting Type	Topology	Number of Outputs	Voltage - Output [Max]	Voltage - Output [Min]	Package / Case	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Ratings	Termination Style	Power (Watts)
MEAN WELL USA Inc. LDD-350LS	OTP Remote On/Off SCP	CE	350 mA	32 V	85 °C	-40 °C	Constant Current	9 V	PWM	95 %	Surface Mount	Buck	1	28 V	2 V	16-SMD Module	0.37 in	9.3 mm	25.4 mm	1 in	10.5 mm	0.41 in
MEAN WELL USA Inc. LDD-350LW	OTP Remote On/Off SCP	CE	350 mA	36 V	85 °C	-40 °C	Constant Current	9 V	PWM	95 %	Chassis Mount	Buck	1	30 VDC	2 V		0.35 "	8.9 mm	22.6 mm	0.89 in	9.9 mm	0.39 "	IP67	Wire Leads
MEAN WELL USA Inc. LDD-350H-WDA	Remote On/Off SCP	CE EAC	350 mA	50 V	85 °C	-40 °C	Constant Current	6 V	Analog PWM	95 %	Chassis Mount	Buck	1	45 V	3 V	Module Wire Leads	4.34 "	110.2 mm	40.6 mm	1.6 "	23.6 mm	0.93 in			16 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

350mA 3 ~ 45V Constant Current LED Driver Buck Topology 1 Output
