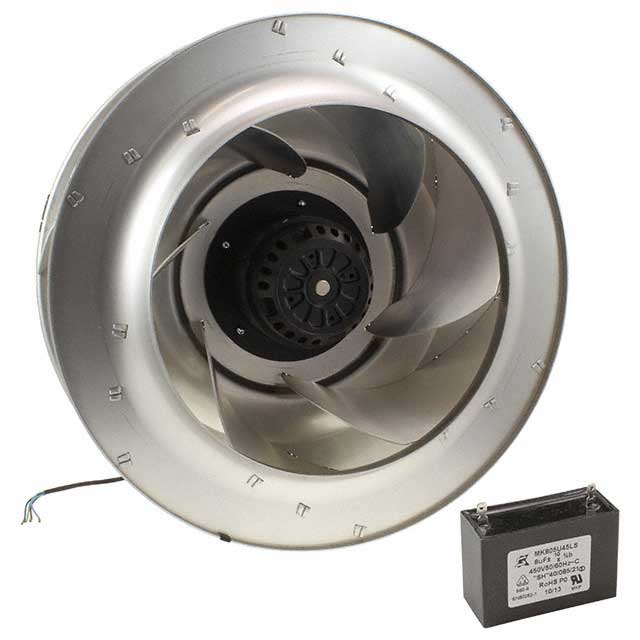

UF360AAA12-H1C4A
ActiveMechatronics Fan Group
IMPELLER 360X167MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF360AAA12-H1C4A
ActiveMechatronics Fan Group
IMPELLER 360X167MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UF360AAA12-H1C4A | UF360 Series |
|---|---|---|
| Approval Agency | CE, cUL, TUV, UL | CE, cUL, TUV, UL |
| Bearing Type | Ball | Ball |
| Current Rating (Amps) | 2.26 A | 1.13 - 2.26 A |
| Fan Type | Motorized Impellers | Motorized Impellers |
| Features | Permanent Split Capacitor Motor | Permanent Split Capacitor Motor |
| Material - Blade | Aluminum | Aluminum |
| Material - Frame | Aluminum | Aluminum |
| Noise | 70 dB(A) | 70 dB(A) |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -20 °C | -20 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Power (Watts) | 270 W | 265 - 270 W |
| RPM | 1600 RPM | 1600 RPM |
| Size / Dimension | Round | Round |
| Size / Dimension [diameter] | 360 mm | 360 mm |
| Static Pressure | 548 Pa | 548 Pa |
| Static Pressure | 2.2 in H2O | 2.2 in H2O |
| Termination | 4 Wire Leads | 4 Wire Leads |
| Voltage - Rated | 115 VAC | 115 - 230 VAC |
| Weight | 11 lbs | 11 lbs |
| Weight | 5 kg | 5 kg |
| Width | 167.3 mm | 167.3 mm |
UF360 Series
IMPELLER 360X167MM 115VAC
| Part | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Width | RPM | Material - Frame | Termination | Weight | Weight | Power (Watts) | Material - Blade | Voltage - Rated | Noise | Approval Agency | Bearing Type | Fan Type | Size / Dimension | Size / Dimension [diameter] | Features | Static Pressure | Static Pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Mechatronics Fan Group UF360AAA12-H1C4A | 2.26 A | -20 °C | 70 °C | -20 C | 70 °C | 167.3 mm | 1600 RPM | Aluminum | 4 Wire Leads | 11 lbs | 5 kg | 270 W | Aluminum | 115 VAC | 70 dB(A) | CE, cUL, TUV, UL | Ball | Motorized Impellers | Round | 360 mm | Permanent Split Capacitor Motor | 548 Pa | 2.2 in H2O |
Mechatronics Fan Group UF360AAA23-H1C4A | 1.13 A | -20 °C | 70 °C | -20 C | 70 °C | 167.3 mm | 1600 RPM | Aluminum | 4 Wire Leads | 11 lbs | 5 kg | 265 W | Aluminum | 230 VAC | 70 dB(A) | CE, cUL, TUV, UL | Ball | Motorized Impellers | Round | 360 mm | Permanent Split Capacitor Motor | 548 Pa | 2.2 in H2O |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 234.38 | |
Description
General part information
UF360 Series
Fan Motorized Impellers 115VAC Round - 360mm Dia Ball 1645.0 CFM (46.06m³/min) 4 Wire Leads
